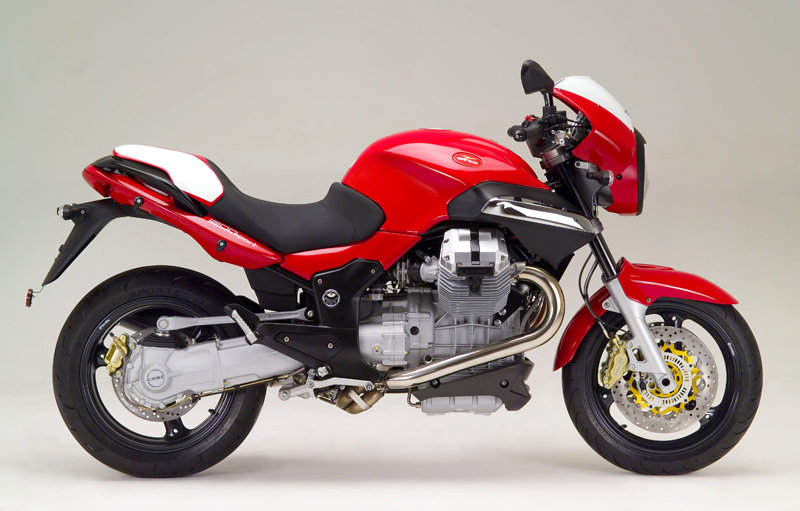

2009 Moto Guzzi Breva 1200 Sport Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Moto Guzzi Breva 1200 Sport.

Basic Specs

Year2009
MakeMoto Guzzi
ModelMoto Guzzi Breva 1200 Sport
TypeSport
CostUS$ 13590. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1151.00 ccm (70.23 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.8:1
Bore/Stroke95.0 x 81.2 mm (3.7 x 3.2 inches)
Valves/Cylinder2
FuelingInjection. Magneti Marelli IAW5A, and #945;-n type; 2 Ø 45 mm throttle bodies, Weber IWP 162 injectors, Lambda control, twin spark ignition
Ignition
ExhaustStainless steel, 2 into 1 type with catalytic converter, height-adjustable muffler
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchDouble disk, dry
Driveline

Performance

Horespower95.00 HP (69.3 kW)
Torque100.00 Nm (10.2 kgf-m or 73.8 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity23.00 litres (6.08 gallons)
Emissions

Chassis

Frame TypeTubular cradle, high tensile steel
Rake25.0°
Trail120 mm (4.7 inches)
Front SuspensionTelescopic hydraulic fork with 45 mm and TIN surface treatment, preload adjustable
Front Travel140 mm (5.5 inches)
Rear SuspensionSingle arm suspension with progressive linkage, rear shock absorber adjustable in rebound and pre-load (hydraulic)
Rear Travel140 mm (5.5 inches)
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,160 mm (45.7 inches)
Total Length2,195 mm (86.4 inches)
Total Width840 mm (33.1 inches)
Ground Clearance185 mm (7.3 inches)
Wheelbase1,485 mm (58.5 inches)
Dry Weight229.0 kg (504.9 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. Twin stainless steel floating disc, wave type, ¨ª 320 mm, 4 opposed pistons
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Single steel fixed disc, ¨ª 282 mm, floating caliper with 2 parallel pistons
Rear Brake Diameter282 mm (11.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Moto Guzzi Breva 1200 Sport. This Sport model is powered by a V2, four-stroke engine with 1151.00 ccm (70.23 cubic inches) of actual displacement before 9.8:1 compression. Fueling is metered via Injection. Magneti Marelli IAW5A, and #945;-n type; 2 Ø 45 mm throttle bodies, Weber IWP 162 injectors, Lambda control, twin spark ignition allowing this machine to produce its 95.00 HP (69.3 kW) horsepower and 100.00 Nm (10.2 kgf-m or 73.8 ft.lbs) torque. According to our records engine heat of the Moto Guzzi Breva 1200 Sport is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Tubular cradle, high tensile steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Twin stainless steel floating disc, wave type, ¨ª 320 mm, 4 opposed pistons front brakes and Single disc. Single steel fixed disc, ¨ª 282 mm, floating caliper with 2 parallel pistons rear brakes. The Moto Guzzi Breva 1200 Sport was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
