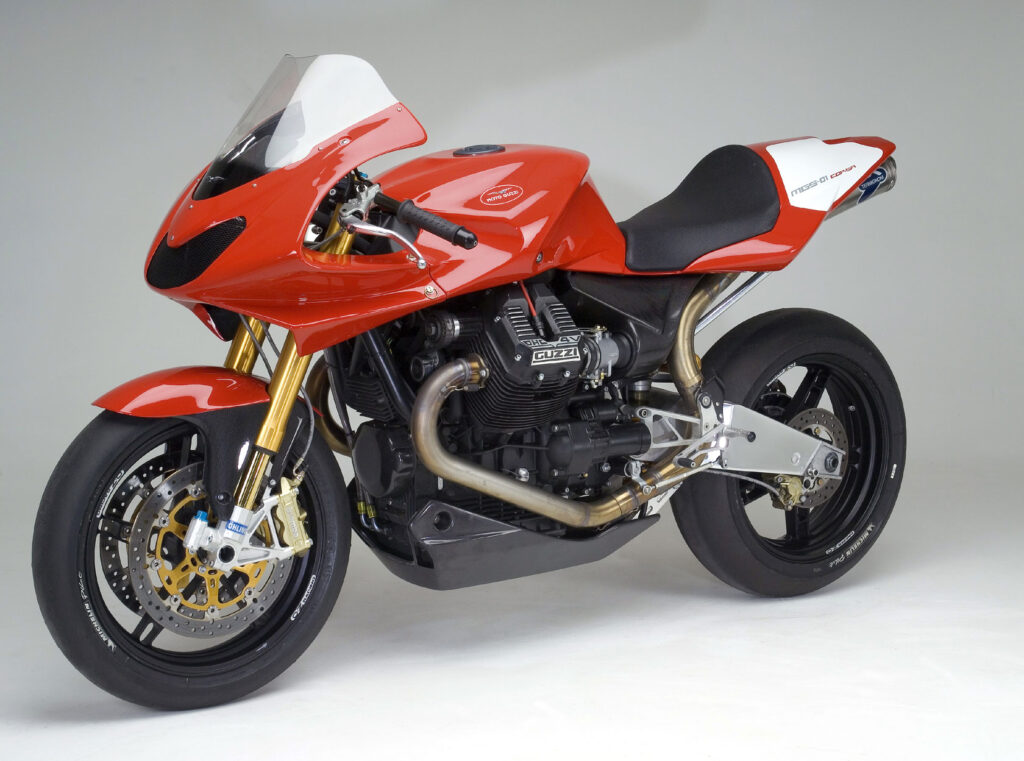

2009 Moto Guzzi MGS-01 Corsa Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Moto Guzzi MGS-01 Corsa.

Basic Specs

Year2009
MakeMoto Guzzi
ModelMoto Guzzi MGS-01 Corsa
TypeSport
Cost

Engine

Displacement1225.00 ccm (74.75 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression11.6:1
Bore/Stroke100.0 x 78.0 mm (3.9 x 3.1 inches)
Valves/Cylinder4
FuelingInjection. Weber-Marelli electronic fuel injection with stepper motor control
IgnitionMarelli IAW 15M electronic digital
Exhaust
LubricationSplash
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchSintering double disc, hydraulic drive
Driveline

Performance

Horespower128.00 HP (93.4 kW)
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity18.50 litres (4.89 gallons)
Emissions

Chassis

Frame TypeRectangular section single-beam ALS 450
Rake24.0°
Trail97 mm (3.8 inches)
Front SuspensionÖhlins up-side down fork Ø 43 mm, 3 adjustment positions
Front Travel120 mm (4.7 inches)
Rear SuspensionAluminium-plate swinging fork Öhlins monoshock absorber, 4 adjustment positions
Rear Travel125 mm (4.9 inches)
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,165 mm (45.9 inches)
Total Length2,070 mm (81.5 inches)
Total Width750 mm (29.5 inches)
Ground Clearance185 mm (7.3 inches)
Wheelbase1,450 mm (57.1 inches)
Dry Weight192.0 kg (423.3 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/60-17
Rear Tire/Tyre180/67-17
Front BrakesDouble disc. Floating discs, 4 pads radial caliper
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesDouble disc. Double piston caliper
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Moto Guzzi MGS-01 Corsa. This Sport model is powered by a V2, four-stroke engine with 1225.00 ccm (74.75 cubic inches) of actual displacement before 11.6:1 compression. Fueling is metered via Injection. Weber-Marelli electronic fuel injection with stepper motor control allowing this machine to produce its 128.00 HP (93.4 kW) horsepower and torque. According to our records engine heat of the Moto Guzzi MGS-01 Corsa is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/60-17 and the rear is 180/67-17 . The entire package is supported by the frame, Rectangular section single-beam ALS 450. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Floating discs, 4 pads radial caliper front brakes and Double disc. Double piston caliper rear brakes. The Moto Guzzi MGS-01 Corsa was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Limited series for racing use.
