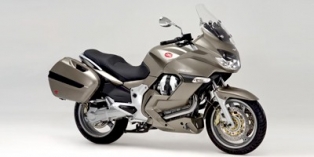

2009 Moto Guzzi Norge 1200 GTL Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Moto Guzzi Norge 1200 GTL.

Basic Specs

Year2009
MakeMoto Guzzi
ModelMoto Guzzi Norge 1200 GTL
Cost

Engine

Displacement1151.00 ccm (70.23 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.8:1
Bore/Stroke95.0 x 81.2 mm (3.7 x 3.2 inches)
Valves/Cylinder2
FuelingInjection. Weber-Marelli electronic fuel injection with stepper motor control
Ignition
ExhaustStainless steel, 2 into 1 type with catalytic converter, height-adjustable muffler. Euro 3.
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower88.50 HP (64.6 kW)
Torque100.00 Nm (10.2 kgf-m or 73.8 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity23.00 litres (6.08 gallons)
Emissions

Chassis

Frame TypeTubular cradle, high tensile steel
Rake25.0°
Trail120 mm (4.7 inches)
Front SuspensionTelescopic hydraulic fork with Ø 45 mm, preload adjustable
Front Travel120 mm (4.7 inches)
Rear SuspensionSingle arm suspension with progressive linkage, rear shock absorber adjustable in rebound and pre-load (hydraulic)
Rear Travel140 mm (5.5 inches)
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,125 mm (44.3 inches)
Total Length2,195 mm (86.4 inches)
Total Width870 mm (34.3 inches)
Ground Clearance185 mm (7.3 inches)
Wheelbase1,495 mm (58.9 inches)
Dry Weight247.0 kg (544.5 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. ABS
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS
Rear Brake Diameter282 mm (11.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Moto Guzzi Norge 1200 GTL. This Touring model is powered by a V2, four-stroke engine with 1151.00 ccm (70.23 cubic inches) of actual displacement before 9.8:1 compression. Fueling is metered via Injection. Weber-Marelli electronic fuel injection with stepper motor control allowing this machine to produce its 88.50 HP (64.6 kW) horsepower and 100.00 Nm (10.2 kgf-m or 73.8 ft.lbs) torque. According to our records engine heat of the Moto Guzzi Norge 1200 GTL is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Tubular cradle, high tensile steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS front brakes and Single disc. ABS rear brakes. The Moto Guzzi Norge 1200 GTL was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
