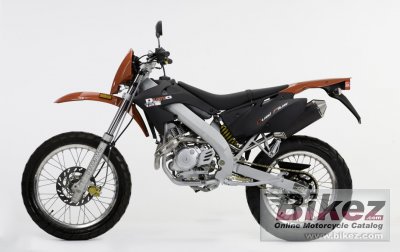

2009 Motorhispania Duna 125 Supermotard Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Motorhispania Duna 125 Supermotard.

Basic Specs

Year2009
MakeMotorhispania
ModelMotorhispania Duna 125 Supermotard
Cost

Engine

Displacement125.00 ccm (7.63 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke54.0 x 54.0 mm (2.1 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor. Mikuni VM 20
IgnitionCDI
ExhaustEuro 3
Lubrication
CoolingAir

Drivetrain

Gearbox
Final DriveChain
ClutchWet, multiplate
Driveline

Performance

Horespower12.00 HP (8.8 kW)
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity7.80 litres (2.06 gallons)
Emissions

Chassis

Frame TypeDeltabox double steel beam
Rake
Trail
Front SuspensionUpside down fork
Front Travel
Rear SuspensionPaioli monoshock
Rear Travel
Seat
Seat Height805 mm (31.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length1,980 mm (78.0 inches)
Total Width
Ground Clearance
Wheelbase1,350 mm (53.1 inches)
Dry Weight105.0 kg (231.5 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre100/80-17
Rear Tire/Tyre130/70-17
Front BrakesSingle disc. Galfer Wave
Front Brake Diameter280 mm (11.0 inches)
Rear BrakesSingle disc. Galfer Wave
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Motorhispania Duna 125 Supermotard. This Super motard model is powered by a Single cylinder, four-stroke engine with 125.00 ccm (7.63 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor. Mikuni VM 20 allowing this machine to produce its 12.00 HP (8.8 kW) horsepower and torque. According to our records engine heat of the Motorhispania Duna 125 Supermotard is moderated by Air. You'll need to get familiar with the transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 100/80-17 and the rear is 130/70-17 . The entire package is supported by the frame, Deltabox double steel beam. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Galfer Wave front brakes and Single disc. Galfer Wave rear brakes. The Motorhispania Duna 125 Supermotard was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

MH bikes are made in Spain.
