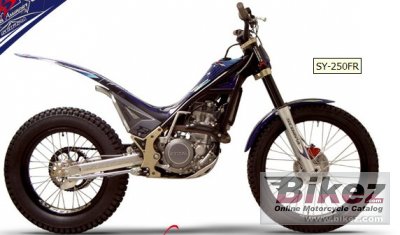

These are the known mechanical and performance specifications for your 2009 Scorpa SY-250FR 15THA.
Basic Specs
Engine
Displacement249.00 ccm (15.19 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.6:1
Bore/Stroke77.0 x 53.6 mm (3.0 x 2.1 inches)
Valves/Cylinder5
FuelingCarburettor. VHST 26 mm DELLORTO Carburettor with resumption pump
IgnitionComputer-controlled Digital Ignition
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveChain
ClutchWet multidisc, with hydraulic command
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity2.00 litres (0.53 gallons)
Emissions
Chassis
Frame TypePerimetric, mixed : 15CDV6 Steel pipes and 6082 forged, and « Champagne » anodized Aluminium decks
Rake
Trail
Front SuspensionMARZOCCHI Aluminium 40 mm hydraulic fork, adjustable compression and rebond damping, 177 mm axle travel
Front Travel
Rear SuspensionSACHS adjustable hydraulic single damper, 165 mm wheel travel
Rear Travel
Seat
Seat Height665 mm (26.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,023 mm (79.6 inches)
Total Width
Ground Clearance315 mm (12.4 inches)
Wheelbase1,330 mm (52.4 inches)
Dry Weight
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter182 mm (7.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter150 mm (5.9 inches)
Wheels
Comments
Made in France.
