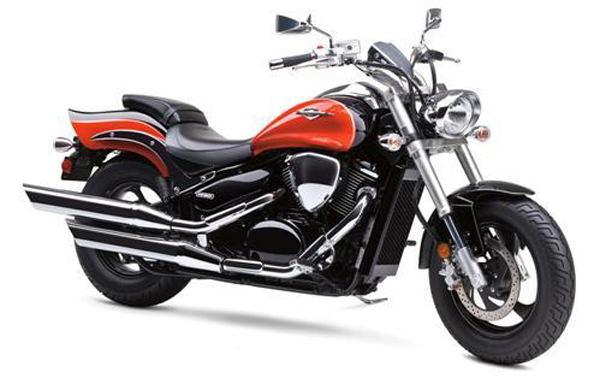

2009 Suzuki Boulevard M50 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Suzuki Boulevard M50.

Basic Specs

Year2009
MakeSuzuki
ModelSuzuki Boulevard M50
CostUS$ 7199. Prices depend on country, taxes, accessories, etc.

Engine

Displacement805.00 ccm (49.12 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.4:1
Bore/Stroke83.0 x 74.4 mm (3.3 x 2.9 inches)
Valves/Cylinder
FuelingInjection
IgnitionElectronic ignition (Transistorized)
Exhaust
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity15.50 litres (4.10 gallons)
Emissions

Chassis

Frame TypeSteel tube
Rake
Trail
Front SuspensionInverted telescopic, coil spring, oil damped
Front Travel
Rear SuspensionLink type, coil spring, oil damped
Rear Travel
Seat
Seat Height700 mm (27.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,125 mm (44.3 inches)
Total Length2,395 mm (94.3 inches)
Total Width920 mm (36.2 inches)
Ground Clearance140 mm (5.5 inches)
Wheelbase1,655 mm (65.2 inches)
Dry Weight
Wet Weight265.0 kg (584.2 pounds)

Wheels & Brakes

Front Tire/Tyre130/90-M16
Rear Tire/Tyre170/80-M15
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Suzuki Boulevard M50. This Custom / cruiser model is powered by a V2, four-stroke engine with 805.00 ccm (49.12 cubic inches) of actual displacement before 9.4:1 compression. Fueling is metered via Injection allowing this machine to produce its horsepower and torque. According to our records engine heat of the Suzuki Boulevard M50 is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 130/90-M16 and the rear is 170/80-M15 . The entire package is supported by the frame, Steel tube. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Suzuki Boulevard M50 was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
