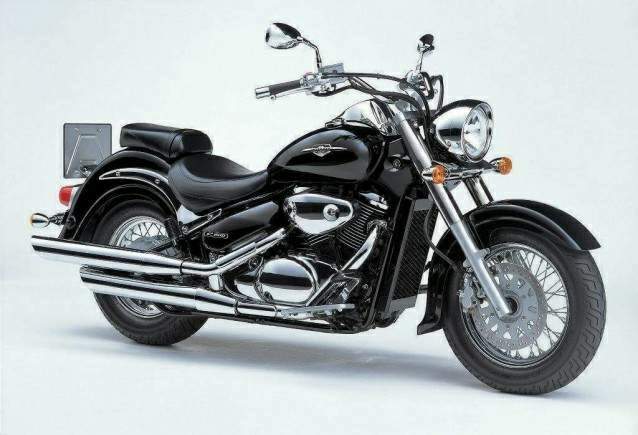

These are the known mechanical and performance specifications for your 2009 Suzuki Intruder C800.
Basic Specs
Engine
Displacement805.00 ccm (49.12 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.4:1
Bore/Stroke83.0 x 74.4 mm (3.3 x 2.9 inches)
Valves/Cylinder
FuelingInjection
IgnitionCDI
Exhaust
LubricationWet sump
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity15.50 litres (4.10 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionTelescopic, coil spring, oil damped
Front Travel
Rear SuspensionLink type, coil spring, oil damped
Rear Travel
Seat
Seat Height700 mm (27.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,105 mm (43.5 inches)
Total Length2,510 mm (98.8 inches)
Total Width970 mm (38.2 inches)
Ground Clearance
Wheelbase1,655 mm (65.2 inches)
Dry Weight246.0 kg (542.3 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre130/90-M16
Rear Tire/Tyre170/80-M15
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
