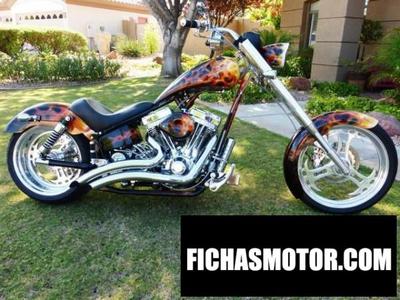

2009 Titan Sidewinder Rubber Mount Chopper Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Titan Sidewinder Rubber Mount Chopper.

Basic Specs

Year2009
MakeTitan
ModelTitan Sidewinder Rubber Mount Chopper
Cost

Engine

Displacement1750.00 ccm (106.79 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.8:1
Bore/Stroke101.6 x 113.0 mm (4.0 x 4.5 inches)
Valves/Cylinder2
FuelingCarburettor
IgnitionSingle fi re programmable ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchPrimo
Driveline

Performance

Horespower112.00 HP (81.8 kW)
Torque164.07 Nm (16.7 kgf-m or 121.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption7.58 litres/100 km (13.2 km/l or 31.03 mpg)
Fuel Capacity17.41 litres (4.60 gallons)
Emissions175.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake34.0°
Trail
Front SuspensionInverted 63 mm forks with Titan billet tripple trees
Front Travel
Rear SuspensionDual chromed agusta shocks
Rear Travel
Seat
Seat Height584 mm (23.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance89 mm (3.5 inches)
Wheelbase1,930 mm (76.0 inches)
Dry Weight308.4 kg (680.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-21
Rear Tire/Tyre260/40-18
Front BrakesSingle disc. 6-piston P.M. calipers
Front Brake Diameter292 mm (11.5 inches)
Rear BrakesSingle disc. 4-piston P.M. calipers
Rear Brake Diameter292 mm (11.5 inches)
Wheels

Comments

It appears you're interested in specifications for the Titan Sidewinder Rubber Mount Chopper. This Custom / cruiser model is powered by a V2, four-stroke engine with 1750.00 ccm (106.79 cubic inches) of actual displacement before 9.8:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 112.00 HP (81.8 kW) horsepower and 164.07 Nm (16.7 kgf-m or 121.0 ft.lbs) torque. According to our records engine heat of the Titan Sidewinder Rubber Mount Chopper is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-21 and the rear is 260/40-18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. 6-piston P.M. calipers front brakes and Single disc. 4-piston P.M. calipers rear brakes. The Titan Sidewinder Rubber Mount Chopper was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

S and S engine. Optional S and S 124 cinch engine.
