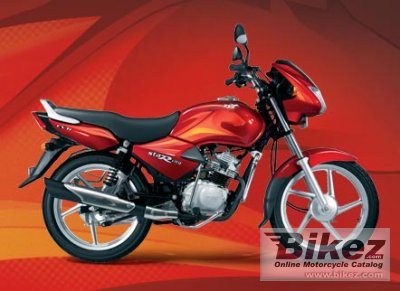

2009 TVS Star City 110 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 TVS Star City 110.

Basic Specs

Year2009
MakeTVS
ModelTVS Star City 110
TypeSport
Cost

Engine

Displacement99.70 ccm (6.08 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox4-speed
Final DriveChain
ClutchWet, multiplate
Driveline

Performance

Horespower5.50 HP (4.0 kW)
Torque7.50 Nm (0.8 kgf-m or 5.5 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity16.00 litres (4.23 gallons)
Emissions

Chassis

Frame TypeSingle cradle, tubular
Rake
Trail
Front SuspensionTelescopic hydraulic fork
Front Travel100 mm (3.9 inches)
Rear SuspensionSpring loaded double acting hydraulic shocker
Rear Travel70 mm (2.8 inches)
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,025 mm (79.7 inches)
Total Width
Ground Clearance165 mm (6.5 inches)
Wheelbase1,250 mm (49.2 inches)
Dry Weight104.0 kg (229.3 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre2.75-18
Rear Tire/Tyre3.00-18
Front BrakesExpanding brake (drum brake)
Front Brake Diameter110 mm (4.3 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter110 mm (4.3 inches)
Wheels

Comments

It appears you're interested in specifications for the TVS Star City 110. This Sport model is powered by a Single cylinder, four-stroke engine with 99.70 ccm (6.08 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 5.50 HP (4.0 kW) horsepower and 7.50 Nm (0.8 kgf-m or 5.5 ft.lbs) torque. According to our records engine heat of the TVS Star City 110 is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 2.75-18 and the rear is 3.00-18 . The entire package is supported by the frame, Single cradle, tubular. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake) front brakes and Expanding brake (drum brake) rear brakes. The TVS Star City 110 was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

TVS bikes are made in India in cooperation with Suzuki.
