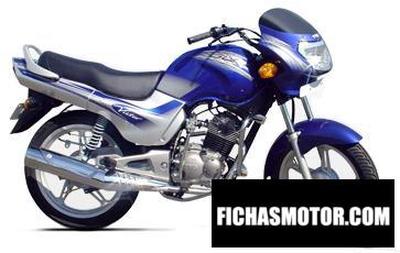

2009 TVS Victor GLX Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 TVS Victor GLX.

Basic Specs

Year2009
MakeTVS
ModelTVS Victor GLX
Cost

Engine

Displacement124.80 ccm (7.62 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke54.5 x 53.5 mm (2.1 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor
Ignitionkick start
Exhaustsingle pipe with silencer
Lubricationwet sump
CoolingAir

Drivetrain

Gearbox4-speed
Final DriveChain
Clutchwet multi plate
Driveline

Performance

Horespower9.60 HP (7.0 kW)
Torque9.50 Nm (1.0 kgf-m or 7.0 ft.lbs)
Top Speed100.0 km/h (62.1 mph)

Fuel Economy & Polution

Fuel Consumption1.90 litres/100 km (52.6 km/l or 123.80 mpg)
Fuel Capacity13.00 litres (3.43 gallons)
Emissions44.1 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Typemonotubular open with engine as stressed member
Rake26.0°
Trail95 mm (3.7 inches)
Front Suspensiontelescopic oil damped
Front Travel
Rear Suspension5 step hydraulic triple rated spring
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height1,145 mm (45.1 inches)
Total Length2,015 mm (79.3 inches)
Total Width710 mm (28.0 inches)
Ground Clearance190 mm (7.5 inches)
Wheelbase1,260 mm (49.6 inches)
Dry Weight113.0 kg (249.1 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre3/18/2004
Rear Tire/Tyre3/18/2006
Front BrakesExpanding brake (drum brake)
Front Brake Diameter130 mm (5.1 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter130 mm (5.1 inches)
Wheels

Comments

It appears you're interested in specifications for the TVS Victor GLX. This Allround model is powered by a Single cylinder, four-stroke engine with 124.80 ccm (7.62 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 9.60 HP (7.0 kW) horsepower and 9.50 Nm (1.0 kgf-m or 7.0 ft.lbs) torque. According to our records engine heat of the TVS Victor GLX is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 3/18/2004 and the rear is 3/18/2006. The entire package is supported by the frame, monotubular open with engine as stressed member. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake) front brakes and Expanding brake (drum brake) rear brakes. The TVS Victor GLX was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
