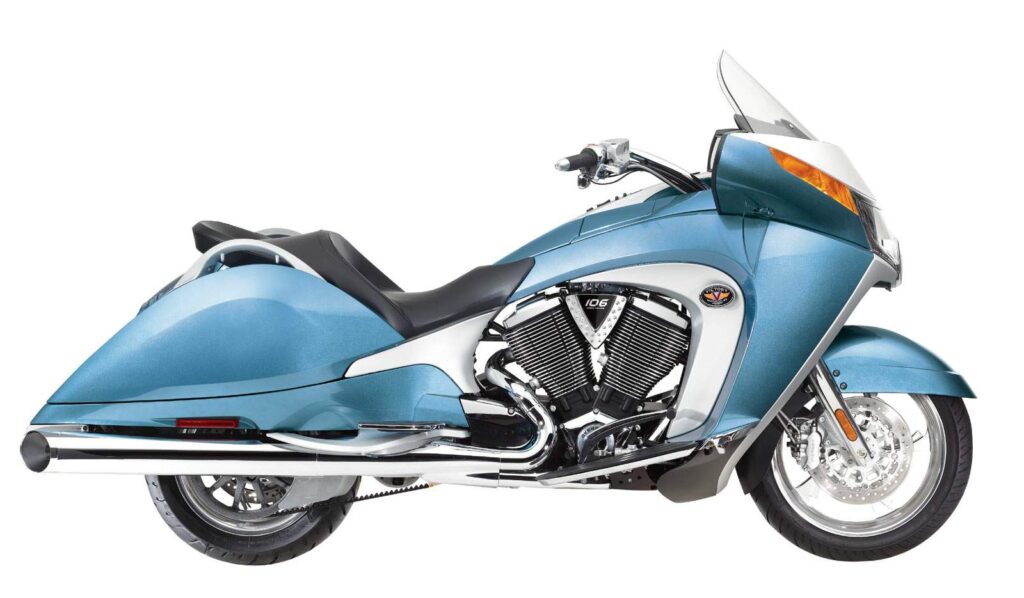

These are the known mechanical and performance specifications for your 2009 Victory Vision Street.
Basic Specs
Year2009
MakeVictory
ModelVictory Vision Street
TypeTouring
CostUS$ 18999. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1731.00 ccm (105.63 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.4:1
Bore/Stroke101.0 x 108.0 mm (4.0 x 4.3 inches)
Valves/Cylinder4
FuelingInjection
Ignition
ExhaustSplit dual exhaust with crossover
Lubrication
CoolingOil & air
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity22.71 litres (6.00 gallons)
Emissions
Chassis
Frame Type
Rake29.0°
Trail137 mm (5.4 inches)
Front SuspensionConventional telescopic fork
Front Travel130 mm (5.1 inches)
Rear SuspensionAluminum swingarm
Rear Travel120 mm (4.7 inches)
Seat
Seat Height673 mm (26.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,629 mm (103.5 inches)
Total Width1,140 mm (44.9 inches)
Ground Clearance148 mm (5.8 inches)
Wheelbase1,669 mm (65.7 inches)
Dry Weight365.0 kg (804.7 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre130/70-18
Rear Tire/Tyre180/60-16
Front BrakesDouble disc. 3-piston caliper
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. 2-piston caliper
Rear Brake Diameter300 mm (11.8 inches)
Wheels
