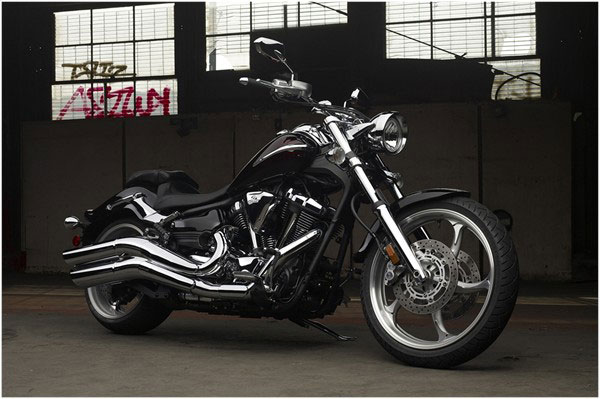

These are the known mechanical and performance specifications for your 2009 Yamaha Raider S.
Basic Specs
Year2009
MakeYamaha
ModelYamaha Raider S
TypeCustom / cruiser
CostUS$ 14499. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1851.85 ccm (113.00 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke100.0 x 118.0 mm (3.9 x 4.6 inches)
Valves/Cylinder4
FuelingInjection. Twin-Bore electronic fuel injection; throttle position sensor
IgnitionTCI: Transistor Controlled Ignition
Exhaust
Lubrication
CoolingAir
Fuel Economy & Polution
Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity15.89 litres (4.20 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeDouble cradle
Rake
Trail
Front SuspensionTelescopic fork
Front Travel130 mm (5.1 inches)
Rear SuspensionSwingarm
Rear Travel89 mm (3.5 inches)
Seat
Seat Height693 mm (27.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,166 mm (45.9 inches)
Total Length2,570 mm (101.2 inches)
Total Width925 mm (36.4 inches)
Ground Clearance
Wheelbase1,801 mm (70.9 inches)
Dry Weight
Wet Weight331.1 kg (730.0 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-21
Rear Tire/Tyre210/40-18
Front BrakesDouble disc
Front Brake Diameter298 mm (11.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter310 mm (12.2 inches)
Wheels
Comments
