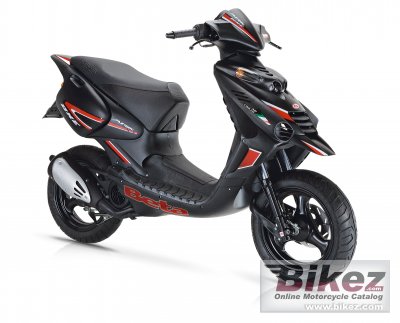

2010 Beta Ark One AC Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Beta Ark One AC.

Basic Specs

Year2010
MakeBeta
ModelBeta Ark One AC
Cost

Engine

Displacement49.00 ccm (2.99 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke40.0 x 39.2 mm (1.6 x 1.5 inches)
Valves/Cylinder
FuelingCarburettor. Dell´Orto PHVA 12
Ignition
Exhaust
LubricationWith mechanical pump - mix gasoline-oil 1,5%
CoolingAir

Drivetrain

GearboxAutomatic
Final DriveBelt
ClutchDry automatic centrifugal type
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity7.50 litres (1.98 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionHydraulic fork with ø32 mm shaft
Front Travel95 mm (3.7 inches)
Rear SuspensionMonoshock with adjustable spring preload
Rear Travel89 mm (3.5 inches)
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length1,740 mm (68.5 inches)
Total Width830 mm (32.7 inches)
Ground Clearance215 mm (8.5 inches)
Wheelbase
Dry Weight88.0 kg (194.0 pounds)
Wet Weight94.0 kg (207.2 pounds)

Wheels & Brakes

Front Tire/Tyre130/60-13
Rear Tire/Tyre130/60-13
Front BrakesSingle disc
Front Brake Diameter190 mm (7.5 inches)
Rear BrakesSingle disc
Rear Brake Diameter190 mm (7.5 inches)
Wheels

Comments

It appears you're interested in specifications for the Beta Ark One AC. This Scooter model is powered by a Single cylinder, two-stroke engine with 49.00 ccm (2.99 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor. Dell´Orto PHVA 12 allowing this machine to produce its horsepower and torque. According to our records engine heat of the Beta Ark One AC is moderated by Air. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/60-13 and the rear is 130/60-13 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Beta Ark One AC was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

A liquid cooled version called Ark One LC is available.
