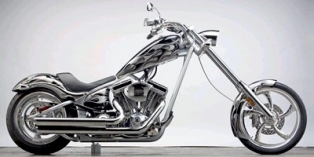

These are the known mechanical and performance specifications for your 2010 Big Dog K-9.
Basic Specs
Year2010
MakeBig Dog
ModelBig Dog K-9
TypeCustom / cruiser
CostUS$ 29900. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1917.00 ccm (116.98 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke104.8 x 111.1 mm (4.1 x 4.4 inches)
Valves/Cylinder
FuelingCarburettor. Optional CLEFI injection.
IgnitionElectronic Single Fire
Exhaust
Lubrication
Cooling
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity16.60 litres (4.39 gallons)
Emissions
Chassis
Frame Type
Rake39.0°
Trail111 mm (4.4 inches)
Front Suspension41 mm Telescopic fork
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height616 mm (24.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,743 mm (108.0 inches)
Total Width
Ground Clearance102 mm (4.0 inches)
Wheelbase2,083 mm (82.0 inches)
Dry Weight318.0 kg (701.1 pounds)
Wet Weight
Wheels & Brakes
Front Tire/TyreMH90-21
Rear Tire/Tyre300/35-R18
Front BrakesSingle disc. 4-piston diff bore
Front Brake Diameter
Rear BrakesSingle disc. 4-piston
Rear Brake Diameter
Wheels
Comments
Award-Winning Chopper Design. Smooth-Riding Hidden Shocks. 4´ Backbone Stretch/8´ Down Tube Stretch. 42-Degree Total Rake.
