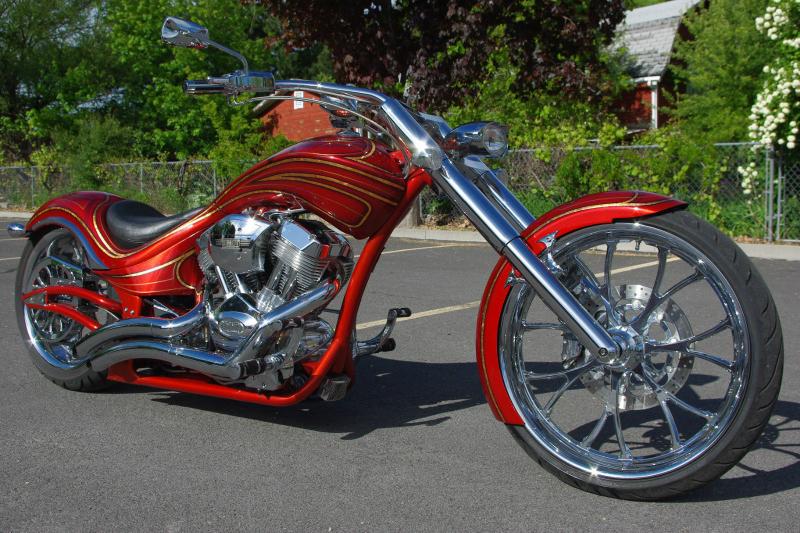

2010 Big Dog Wolf Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Big Dog Wolf.

Basic Specs

Year2010
MakeBig Dog
ModelBig Dog Wolf
CostUS$ 35900. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1976.00 ccm (120.58 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.9:1
Bore/Stroke108.0 x 108.0 mm (4.3 x 4.3 inches)
Valves/Cylinder
FuelingInjection. Electronic Fuel Injection (CLEFI)
IgnitionElectronic Single Fire
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions

Chassis

Frame Type
Rake40.0°
Trail149 mm (5.9 inches)
Front Suspension41 mm Telescopic Sleeved
Front Travel
Rear SuspensionSwing arm
Rear Travel
Seat
Seat Height648 mm (25.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,844 mm (112.0 inches)
Total Width
Ground Clearance98 mm (3.9 inches)
Wheelbase2,120 mm (83.5 inches)
Dry Weight349.0 kg (769.4 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre130/760-R23
Rear Tire/Tyre220/50-R20
Front BrakesSingle disc. 4-piston diff bore
Front Brake Diameter
Rear BrakesSingle disc. 4-piston drive side
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Big Dog Wolf. This Custom / cruiser model is powered by a V2, four-stroke engine with 1976.00 ccm (120.58 cubic inches) of actual displacement before 9.9:1 compression. Fueling is metered via Injection. Electronic Fuel Injection (CLEFI) allowing this machine to produce its horsepower and torque. According to our records engine heat of the Big Dog Wolf is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/760-R23 and the rear is 220/50-R20 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. 4-piston diff bore front brakes and Single disc. 4-piston drive side rear brakes. The Big Dog Wolf was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

56 degree X-Wedge engine. Drive Side Brake. 45-Degree Total Rake
