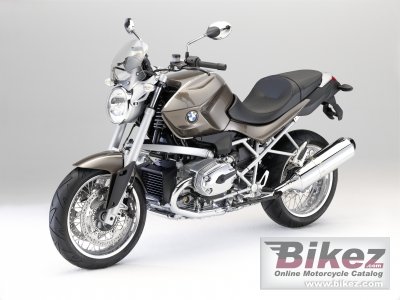

These are the known mechanical and performance specifications for your 2010 BMW R 1200 R.
Basic Specs
Engine
Displacement1170.00 ccm (71.39 cubic inches)
Type
DetailsTwo cylinder boxer, two-stroke
Max RPM
Compression12.0:1
Bore/Stroke101.0 x 73.0 mm (4.0 x 2.9 inches)
Valves/Cylinder4
FuelingInjection. Electronic intake pipe injection/BMS-K digital engine management with overrun fuel cut-off, twin-spark ignition
Ignition
ExhaustClosed-loop 3-way catalytic converter, emission standard EU-3
Lubrication
CoolingOil & air
Drivetrain
Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchSingle dry plate clutch, hydraulically operated
Driveline
Performance
Horespower107.28 HP (78.3 kW)
Torque115.00 Nm (11.7 kgf-m or 84.8 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption4.10 litres/100 km (24.4 km/l or 57.37 mpg)
Fuel Capacity18.00 litres (4.76 gallons)
Emissions95.1 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeTwo-section frame consisting of front and rear sections with load-bearing engine-gearbox unit
Rake27.1°
Trail119 mm (4.7 inches)
Front SuspensionBMW Motorrad Telelever
Front Travel120 mm (4.7 inches)
Rear SuspensionCast aluminium single-sided swing arm with BMW Motorrad Paralever
Rear Travel140 mm (5.5 inches)
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,285 mm (50.6 inches)
Total Length2,145 mm (84.4 inches)
Total Width872 mm (34.3 inches)
Ground Clearance
Wheelbase1,495 mm (58.9 inches)
Dry Weight198.0 kg (436.5 pounds)
Wet Weight223.0 kg (491.6 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter265 mm (10.4 inches)
Wheels
