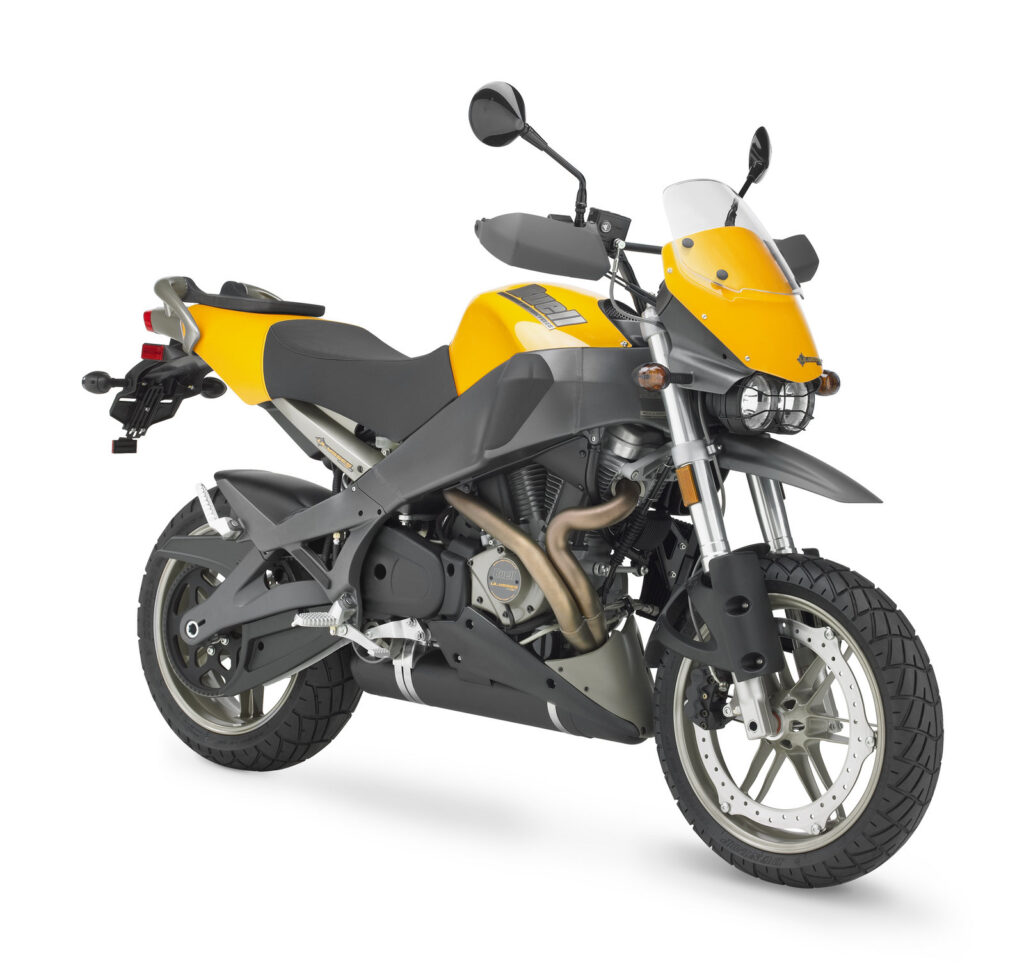

2010 Buell XB12X Ulysses Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Buell XB12X Ulysses.

Basic Specs

Year2010
MakeBuell
ModelBuell XB12X Ulysses
CostUS$ 11449. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1202.88 ccm (73.40 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke88.9 x 96.8 mm (3.5 x 3.8 inches)
Valves/Cylinder2
FuelingInjection. 49 mm down draft DDFI 3 fuel injection
Ignition
ExhaustTuned, tri-pass resonance chamber with InterActive valve and mass-centralised mounting
Lubrication
CoolingOil & air

Drivetrain

Gearbox5-speed
Final DriveBelt
ClutchWet, multi-plate, compensated
Driveline

Performance

Horespower103.00 HP (75.2 kW)
Torque113.90 Nm (11.6 kgf-m or 84.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity16.65 litres (4.40 gallons)
Emissions

Chassis

Frame TypeAluminium frame with Uniplanar™ powertrain vibration isolation system, fuel in frame
Rake23.5°
Trail122 mm (4.8 inches)
Front Suspension47 mm Showa inverted forks with rearward offset axle, adjustable compression damping, rebound damping and spring preload
Front Travel165 mm (6.5 inches)
Rear SuspensionShowa coil-over monoshock with remote reservoir and remote spring preload adjustment, fully adjustable (compression damping, rebound damping and spring preload)
Rear Travel162 mm (6.4 inches)
Seat
Seat Height859 mm (33.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,159 mm (85.0 inches)
Total Width892 mm (35.1 inches)
Ground Clearance171 mm (6.8 inches)
Wheelbase1,374 mm (54.1 inches)
Dry Weight
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesSingle disc. ZTL™ brake, 6-piston, fixed caliper; single-sided, inside-out, stainless steel, floating rotor
Front Brake Diameter375 mm (14.8 inches)
Rear BrakesSingle disc. Two-piston, direct mount caliper; stainless steel, fixed rotor
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Buell XB12X Ulysses. This Enduro / offroad model is powered by a V2, four-stroke engine with 1202.88 ccm (73.40 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Injection. 49 mm down draft DDFI 3 fuel injection allowing this machine to produce its 103.00 HP (75.2 kW) horsepower and 113.90 Nm (11.6 kgf-m or 84.0 ft.lbs) torque. According to our records engine heat of the Buell XB12X Ulysses is moderated by Oil & air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Aluminium frame with Uniplanar™ powertrain vibration isolation system, fuel in frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. ZTL™ brake, 6-piston, fixed caliper; single-sided, inside-out, stainless steel, floating rotor front brakes and Single disc. Two-piston, direct mount caliper; stainless steel, fixed rotor rear brakes. The Buell XB12X Ulysses was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
