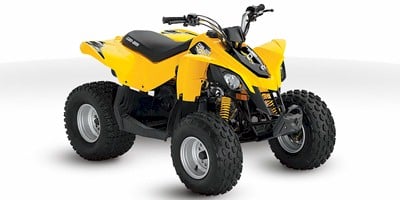

These are the known mechanical and performance specifications for your 2010 Can-Am DS 70.
Basic Specs


Year2010
MakeCan-Am
ModelCan-Am DS 70
TypeATV
CostUS$ 1999. Prices depend on country, taxes, accessories, etc.
Engine
Displacement69.00 ccm (4.21 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke47.0 x 40.0 mm (1.9 x 1.6 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingAir
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity6.06 litres (1.60 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionIndependent A-arm
Front Travel86 mm (3.4 inches)
Rear SuspensionSwingarm
Rear Travel160 mm (6.3 inches)
Seat
Seat Height685 mm (27.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height935 mm (36.8 inches)
Total Length1,520 mm (59.8 inches)
Total Width905 mm (35.6 inches)
Ground Clearance211 mm (8.3 inches)
Wheelbase1,000 mm (39.4 inches)
Dry Weight111.0 kg (244.7 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre19/7-8
Rear Tire/Tyre18/10-8
Front BrakesExpanding brake (drum brake). Double drum
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
Comments
