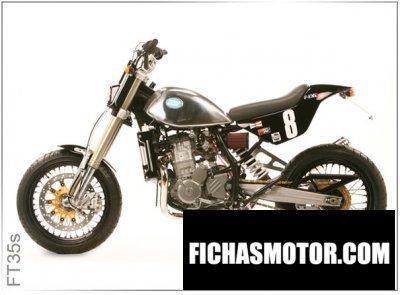

2010 CCM FT35-s Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 CCM FT35-s.

Basic Specs

Year2010
MakeCCM
ModelCCM FT35-s
Cost

Engine

Displacement398.00 ccm (24.29 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.2:1
Bore/Stroke90.0 x 62.6 mm (3.5 x 2.5 inches)
Valves/Cylinder
FuelingCarburettor. Keihin FCR39
IgnitionElectronic (CDI)
Exhaust
LubricationDry Sump
CoolingLiquid

Drivetrain

Gearbox
Final Drive
Clutch
Driveline

Performance

Horespower42.00 HP (30.7 kW)
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity10.00 litres (2.64 gallons)
Emissions

Chassis

Frame TypeTubular steel oil frame
Rake
Trail
Front SuspensionWP 43mm upside down
Front Travel
Rear SuspensionNitro fully adjustable
Rear Travel
Seat
Seat Height840 mm (33.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase
Dry Weight126.0 kg (277.8 pounds)
Wet Weight139.0 kg (306.4 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre150/70-17
Front BrakesSingle disc. Brembo single piston
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Brembo single piston
Rear Brake Diameter260 mm (10.2 inches)
Wheels

Comments

It appears you're interested in specifications for the CCM FT35-s. This Allround model is powered by a Single cylinder, four-stroke engine with 398.00 ccm (24.29 cubic inches) of actual displacement before 12.2:1 compression. Fueling is metered via Carburettor. Keihin FCR39 allowing this machine to produce its 42.00 HP (30.7 kW) horsepower and torque. According to our records engine heat of the CCM FT35-s is moderated by Liquid. You'll need to get familiar with the transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 150/70-17 . The entire package is supported by the frame, Tubular steel oil frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Brembo single piston front brakes and Single disc. Brembo single piston rear brakes. The CCM FT35-s was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

CCM is a British brand.
