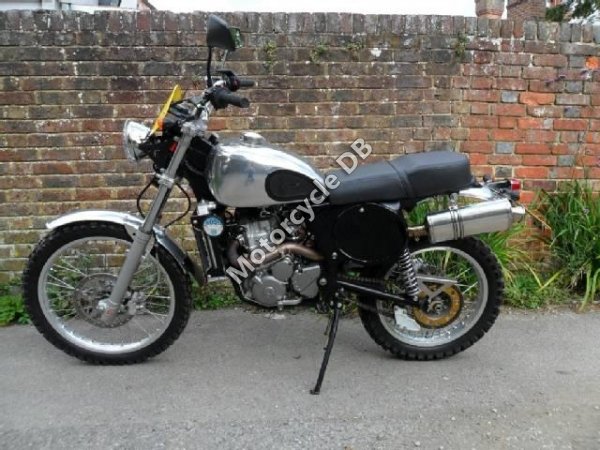

2010 CCM SR-40 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 CCM SR-40.

Basic Specs

Year2010
MakeCCM
ModelCCM SR-40
Cost

Engine

Displacement398.00 ccm (24.29 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke90.0 x 62.6 mm (3.5 x 2.5 inches)
Valves/Cylinder
FuelingCarburettor. Keihin FCR39
IgnitionElectronic ignition
Exhaust
LubricationDry Sump
CoolingLiquid

Drivetrain

Gearbox
Final Drive
Clutch
Driveline

Performance

Horespower42.00 HP (30.7 kW)
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity12.00 litres (3.17 gallons)
Emissions

Chassis

Frame TypeTubular steel oil in frame
Rake
Trail
Front SuspensionPaioli conventional 40mm
Front Travel124 mm (4.9 inches)
Rear SuspensionHagon twin shocks
Rear Travel124 mm (4.9 inches)
Seat
Seat Height930 mm (36.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase
Dry Weight124.0 kg (273.4 pounds)
Wet Weight139.0 kg (306.4 pounds)

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter280 mm (11.0 inches)
Rear BrakesSingle disc
Rear Brake Diameter260 mm (10.2 inches)
Wheels

Comments

It appears you're interested in specifications for the CCM SR-40. This Classic model is powered by a Single cylinder, four-stroke engine with 398.00 ccm (24.29 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor. Keihin FCR39 allowing this machine to produce its 42.00 HP (30.7 kW) horsepower and torque. According to our records engine heat of the CCM SR-40 is moderated by Liquid. You'll need to get familiar with the transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, Tubular steel oil in frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The CCM SR-40 was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

British brand.
