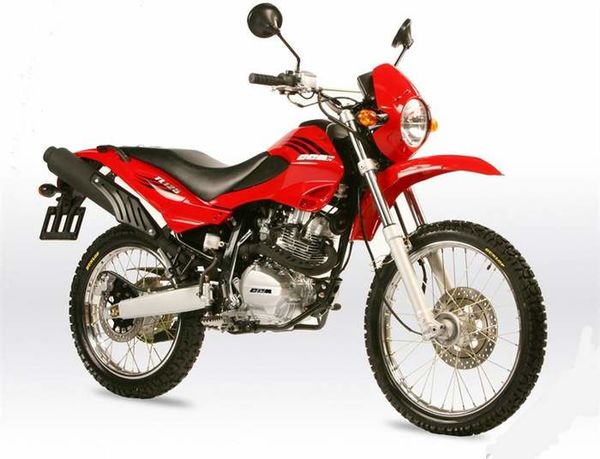

These are the known mechanical and performance specifications for your 2010 CCM TL125.
Basic Specs
Engine
Displacement124.00 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke56.5 x 49.5 mm (2.2 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionCDI
Exhaust
LubricationWet Sump
CoolingAir
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity8.80 litres (2.32 gallons)
Emissions
Chassis
Frame TypeSteel tubular
Rake
Trail
Front SuspensionConventional fork
Front Travel
Rear SuspensionSingle shock with adjustable preload
Rear Travel
Seat
Seat Height880 mm (34.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance220 mm (8.7 inches)
Wheelbase1,390 mm (54.7 inches)
Dry Weight126.0 kg (277.8 pounds)
Wet Weight137.0 kg (302.0 pounds)
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front Brakes
Front Brake Diameter
Rear Brakes
Rear Brake Diameter
Wheels
Comments
Wheels: 21´ front / 18´ rear. CCM is a British brand.
