2010 Confederate Wraith Specs

motorcycle specs

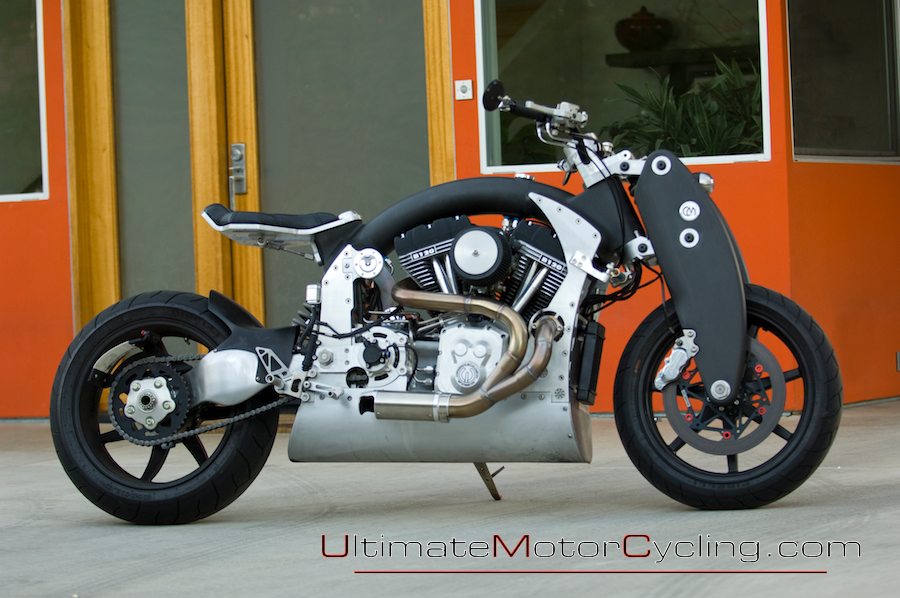

These are the known mechanical and performance specifications for your 2010 Confederate Wraith.

Basic Specs

Year2010
MakeConfederate
ModelConfederate Wraith
Cost

Engine

Displacement1966.57 ccm (120.00 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression
Bore/Stroke104.8 x 114.3 mm (4.1 x 4.5 inches)
Valves/Cylinder
Fueling
Ignition
Exhaust
Lubrication
Cooling

Drivetrain

Gearbox6-speed
Final DriveBelt
Clutch
Driveline

Performance

Horespower125.00 HP (91.2 kW)
Torque176.28 Nm (18.0 kgf-m or 130.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity
Emissions

Chassis

Frame TypeConfederate design triple load path carbon fiber monocoque. Aircraft grade CNC billet bulkhead, fuselage. Oil in frame.
Rake27.0°
Trail
Front SuspensionPenske coil over shock, fully adjustable
Front Travel
Rear SuspensionPenske coil over shock with cooling reservoir; multi adjustable
Rear Travel
Seat
Seat Height775 mm (30.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase
Dry Weight176.9 kg (390.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/60-17
Rear Tire/Tyre280/55-17
Front BrakesDouble disc. Bremo, 4-piston
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Bremo, 2-piston
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Confederate Wraith. This Naked bike model is powered by a V2, four-stroke engine with 1966.57 ccm (120.00 cubic inches) of actual displacement before compression. Fueling is metered via allowing this machine to produce its 125.00 HP (91.2 kW) horsepower and 176.28 Nm (18.0 kgf-m or 130.0 ft.lbs) torque. According to our records engine heat of the Confederate Wraith is moderated by . You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/60-17 and the rear is 280/55-17 . The entire package is supported by the frame, Confederate design triple load path carbon fiber monocoque. Aircraft grade CNC billet bulkhead, fuselage. Oil in frame.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Bremo, 4-piston front brakes and Single disc. Bremo, 2-piston rear brakes. The Confederate Wraith was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Carbon fiber wheels. Limited production of 250 bikes.
