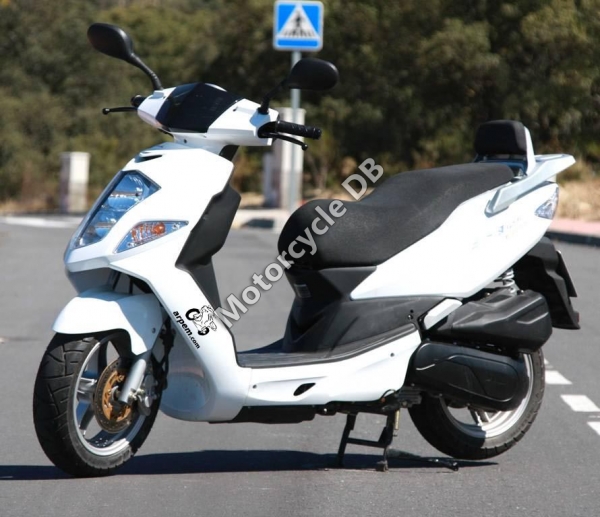

These are the known mechanical and performance specifications for your 2010 Daelim S-One.
Basic Specs
Engine
Displacement125.00 ccm (7.63 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke56.0 x 50.7 mm (2.2 x 2.0 inches)
Valves/Cylinder4
FuelingCarburettor. CV type
IgnitionTransistorized digital
Exhaust
Lubrication
CoolingOil & air
Fuel Economy & Polution
Fuel Consumption2.00 litres/100 km (50.0 km/l or 117.61 mpg)
Fuel Capacity9.50 litres (2.51 gallons)
Emissions46.4 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake
Trail
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionSwing arm
Rear Travel
Seat
Seat Height770 mm (30.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,120 mm (44.1 inches)
Total Length1,965 mm (77.4 inches)
Total Width
Ground Clearance120 mm (4.7 inches)
Wheelbase1,350 mm (53.1 inches)
Dry Weight126.0 kg (277.8 pounds)
Wet Weight138.0 kg (304.2 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-13
Rear Tire/Tyre130/60-13
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
Comments
Called both S1 and S-One.
