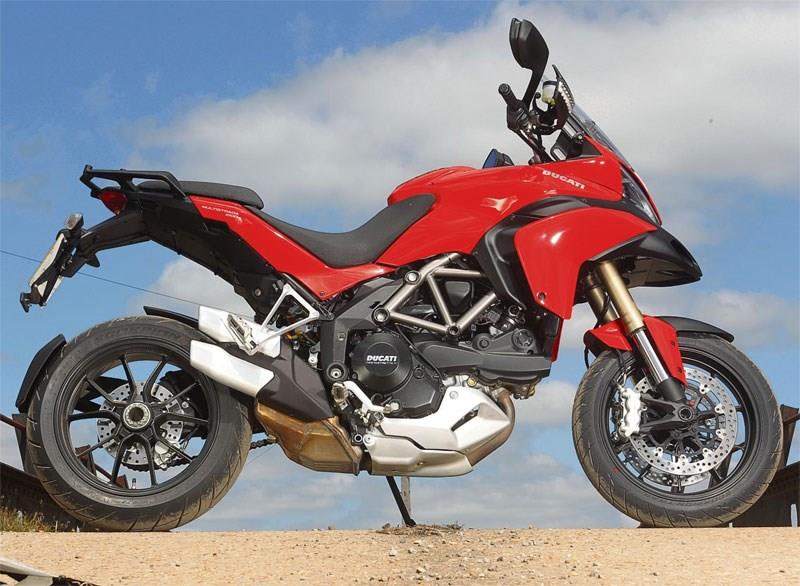

2010 Ducati Multistrada 1200 S Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Ducati Multistrada 1200 S.

Basic Specs

Year2010
MakeDucati
ModelDucati Multistrada 1200 S
Cost

Engine

Displacement1198.40 ccm (73.13 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke106.0 x 67.9 mm (4.2 x 2.7 inches)
Valves/Cylinder
FuelingInjection. Tsubishi electronic fuel injection system, Mikuni elliptical throttle bodies
Ignition
ExhaustStainless steel muffler with catalytic converter and 2 lambda probes, alluminium tail pipes
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchLight action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run
Driveline

Performance

Horespower150.00 HP (109.5 kW)
Torque118.65 Nm (12.1 kgf-m or 87.5 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity20.00 litres (5.28 gallons)
Emissions

Chassis

Frame TypeTubular steel Trellis frame
Rake25.0°
Trail
Front SuspensionÖhlins 48mm fully adjustable usd forks, electronic compression and rebound adjustment
Front Travel
Rear SuspensionProgressive linkage with fully adjustable Ohlins electronic monoshock. Aluminium single-sided swingarm
Rear Travel
Seat
Seat Height850 mm (33.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,530 mm (60.2 inches)
Dry Weight192.0 kg (423.3 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/55-ZR17
Front BrakesDouble disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter245 mm (9.6 inches)
Wheels

Comments

It appears you're interested in specifications for the Ducati Multistrada 1200 S. This Sport touring model is powered by a V2, four-stroke engine with 1198.40 ccm (73.13 cubic inches) of actual displacement before 11.5:1 compression. Fueling is metered via Injection. Tsubishi electronic fuel injection system, Mikuni elliptical throttle bodies allowing this machine to produce its 150.00 HP (109.5 kW) horsepower and 118.65 Nm (12.1 kgf-m or 87.5 ft.lbs) torque. According to our records engine heat of the Ducati Multistrada 1200 S is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 190/55-ZR17 . The entire package is supported by the frame, Tubular steel Trellis frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Ducati Multistrada 1200 S was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
