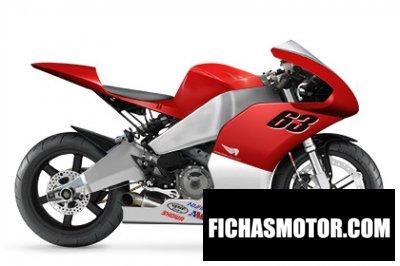

2010 Erik Buell Racing 1190RR Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Erik Buell Racing 1190RR.

Basic Specs

Year2010
MakeErik Buell Racing
ModelErik Buell Racing 1190RR
TypeSport
CostUS$ 44900. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1190.00 ccm (72.61 cubic inches)
Type72 and #730; V-Twin. Titanium valves, 42.0mm intake, 35.4 mm exhaust
DetailsV2, four-stroke
Max RPM
Compression14.3:1
Bore/Stroke106.0 x 67.5 mm (4.2 x 2.7 inches)
Valves/Cylinder4
FuelingInjection. IDS Technology DDFI 3 electronic fuel injection and engine management system, fully programmable, 61mm throttle bodies, dual injector with showerhead, PWM fuel pump
Ignition
ExhaustTitanium ultralight 2 into 1 system.
Lubrication
Cooling

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchMultiplate Slipper
Driveline520 Chain. Primary drive: Straight cut gear, 1.806 ratio.

Performance

Horespower185.00 HP (135.0 kW)
Torque126.11 Nm (12.9 kgf-m or 93.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.41 litres (4.60 gallons)
Emissions

Chassis

Frame TypeLight alloy large section beam with integral fuel cell. Subframe: Light alloy tubular.
Rake
Trail
Front SuspensionShowa Race 43mm inverted fork, fully adjustable with BPF technology providing true separation of rebound and compression damping.
Front Travel120 mm (4.7 inches)
Rear SuspensionLight alloy swingarm with Showa Race damper, adjustable compression, rebound and ride height.
Rear Travel127 mm (5.0 inches)
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,400 mm (55.1 inches)
Dry Weight163.3 kg (360.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/55-ZR17
Front BrakesDouble disc. Semi floating ISO multi-fin rotor with 8 piston ZTL2 caliper
Front Brake Diameter388 mm (15.3 inches)
Rear BrakesSingle disc. Lightweight disc, 2 piston caliper
Rear Brake Diameter240 mm (9.4 inches)
Wheels6 spoke magnesium

Comments

It appears you're interested in specifications for the Erik Buell Racing 1190RR. This Sport model is powered by a 72 and #730; V-Twin. Titanium valves, 42.0mm intake, 35.4 mm exhaust V2, four-stroke engine with 1190.00 ccm (72.61 cubic inches) of actual displacement before 14.3:1 compression. Fueling is metered via Injection. IDS Technology DDFI 3 electronic fuel injection and engine management system, fully programmable, 61mm throttle bodies, dual injector with showerhead, PWM fuel pump allowing this machine to produce its 185.00 HP (135.0 kW) horsepower and 126.11 Nm (12.9 kgf-m or 93.0 ft.lbs) torque. According to our records engine heat of the Erik Buell Racing 1190RR is moderated by . You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 190/55-ZR17 . The entire package is supported by the frame, Light alloy large section beam with integral fuel cell. Subframe: Light alloy tubular.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Semi floating ISO multi-fin rotor with 8 piston ZTL2 caliper front brakes and Single disc. Lightweight disc, 2 piston caliper rear brakes. The Erik Buell Racing 1190RR was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Adjustable rake. Adjustable wheelbase. Brand name sometimes abbreviated EBR or EBRacing. Track bike, not street legal.
