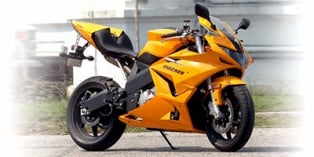

2010 Fischer MRX Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Fischer MRX.

Basic Specs

Year2010
MakeFischer
ModelFischer MRX
TypeSport
CostUS$ 7995. Prices depend on country, taxes, accessories, etc.

Engine

Displacement647.00 ccm (39.48 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke81.6 x 62.0 mm (3.2 x 2.4 inches)
Valves/Cylinder4
FuelingCarburettor. 2 x Mikuni 39mm
IgnitionComputer-controlled digital with variable mapping
ExhaustDual-chamber stainless
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
Clutch
Driveline

Performance

Horespower80.00 HP (58.4 kW)
Torque52.00 Nm (5.3 kgf-m or 38.4 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions

Chassis

Frame TypeTwin spar alloy frame with trellis sub-structure.
Rake24.0°
Trail98 mm (3.9 inches)
Front Suspension43mm inverted telescopic with compression and rebound adjustment
Front Travel
Rear SuspensionOhlins single shock with adjustable ride height, compression damping, and spring preload
Rear Travel
Seat
Seat Height749 mm (29.5 inches) If adjustable, lowest setting.
Alt. Seat Height800 mm (31.5 inches) If adjustable, highest setting.
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,397 mm (55.0 inches)
Dry Weight166.5 kg (367.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre160/60-ZR17
Front BrakesDouble disc. Bremo
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter210 mm (8.3 inches)
Wheels

Comments

It appears you're interested in specifications for the Fischer MRX. This Sport model is powered by a V2, four-stroke engine with 647.00 ccm (39.48 cubic inches) of actual displacement before 11.5:1 compression. Fueling is metered via Carburettor. 2 x Mikuni 39mm allowing this machine to produce its 80.00 HP (58.4 kW) horsepower and 52.00 Nm (5.3 kgf-m or 38.4 ft.lbs) torque. According to our records engine heat of the Fischer MRX is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 160/60-ZR17 . The entire package is supported by the frame, Twin spar alloy frame with trellis sub-structure.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Bremo front brakes and Single disc rear brakes. The Fischer MRX was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Digital rider information center featuring large, analog tachometer and full electronic dashboard with digital speedometer, fuel level, time, temp, clock, and built-in performance timers.
