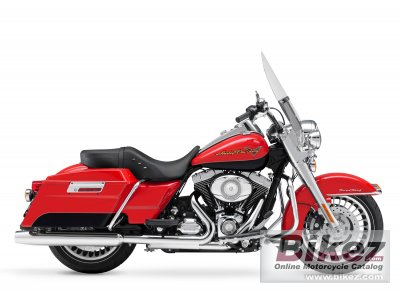

2010 Harley-Davidson FLHR Road King Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Harley-Davidson FLHR Road King.

Basic Specs

Year2010
MakeHarley-Davidson
ModelHarley-Davidson FLHR Road King
CostUS$ 16999. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1584.00 ccm (96.66 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.1 mm (3.8 x 4.4 inches)
Valves/Cylinder2
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
Exhaust2-1-2 chrome exhaust with dual mufflers
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
Clutch
Driveline

Performance

Horespower
Torque127.00 Nm (12.9 kgf-m or 93.7 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity22.70 litres (6.00 gallons)
Emissions

Chassis

Frame TypeMild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame.
Rake26.0°
Trail170 mm (6.7 inches)
Front Suspension41.3mm telescopic
Front Travel117 mm (4.6 inches)
Rear SuspensionAir-adjustable
Rear Travel76 mm (3.0 inches)
Seat
Seat Height693 mm (27.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,413 mm (95.0 inches)
Total Width
Ground Clearance
Wheelbase1,612 mm (63.5 inches)
Dry Weight351.0 kg (773.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre130/80-B17
Rear Tire/Tyre180/65-B16
Front BrakesDouble disc. 4-piston fixed caliper
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. 4-piston fixed caliper
Rear Brake Diameter300 mm (11.8 inches)
Wheels

Comments

It appears you're interested in specifications for the Harley-Davidson FLHR Road King. This Touring model is powered by a V2, four-stroke engine with 1584.00 ccm (96.66 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection allowing this machine to produce its horsepower and 127.00 Nm (12.9 kgf-m or 93.7 ft.lbs) torque. According to our records engine heat of the Harley-Davidson FLHR Road King is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/80-B17 and the rear is 180/65-B16 . The entire package is supported by the frame, Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. 4-piston fixed caliper front brakes and Single disc. 4-piston fixed caliper rear brakes. The Harley-Davidson FLHR Road King was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
