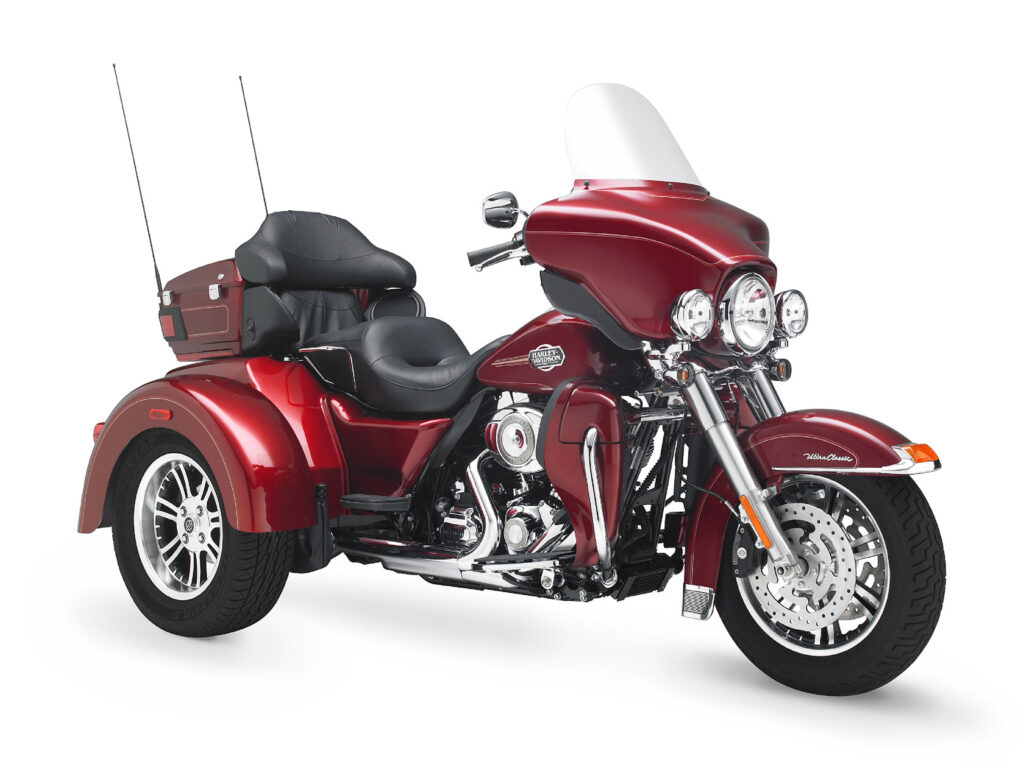

These are the known mechanical and performance specifications for your 2010 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic.
Basic Specs


Year2010
MakeHarley-Davidson
ModelHarley-Davidson FLHTCUTG Tri Glide Ultra Classic
TypeAllround
CostUS$ 29999. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1687.97 ccm (103.00 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke
Valves/Cylinder2
FuelingInjection. ESPFI
Ignition
Exhaust2-1-2 exhaust system
Lubrication
CoolingAir
Performance
Horespower
Torque136.95 Nm (14.0 kgf-m or 101.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity22.71 litres (6.00 gallons)
Emissions
Chassis
Frame TypeMild steel, square-section backbone with twin downtubes
Rake26.0°
Trail
Front SuspensionTriple Circuit Damping (TCD) front forks
Front Travel117 mm (4.6 inches)
Rear SuspensionAir-adjustable
Rear Travel76 mm (3.0 inches)
Seat
Seat Height698 mm (27.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase
Dry Weight
Wet Weight
Wheels & Brakes
Front Tire/Tyre130/80-B17
Rear Tire/Tyre180/65-B16
Front BrakesDouble disc. Brembo
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesDouble disc. Hayes Brake dual-disc rear brake system with integrated park brake
Rear Brake Diameter300 mm (11.8 inches)
Wheels
Comments
Three-wheel specific frame. Optional electric reverse. Rear luggage trunk.
