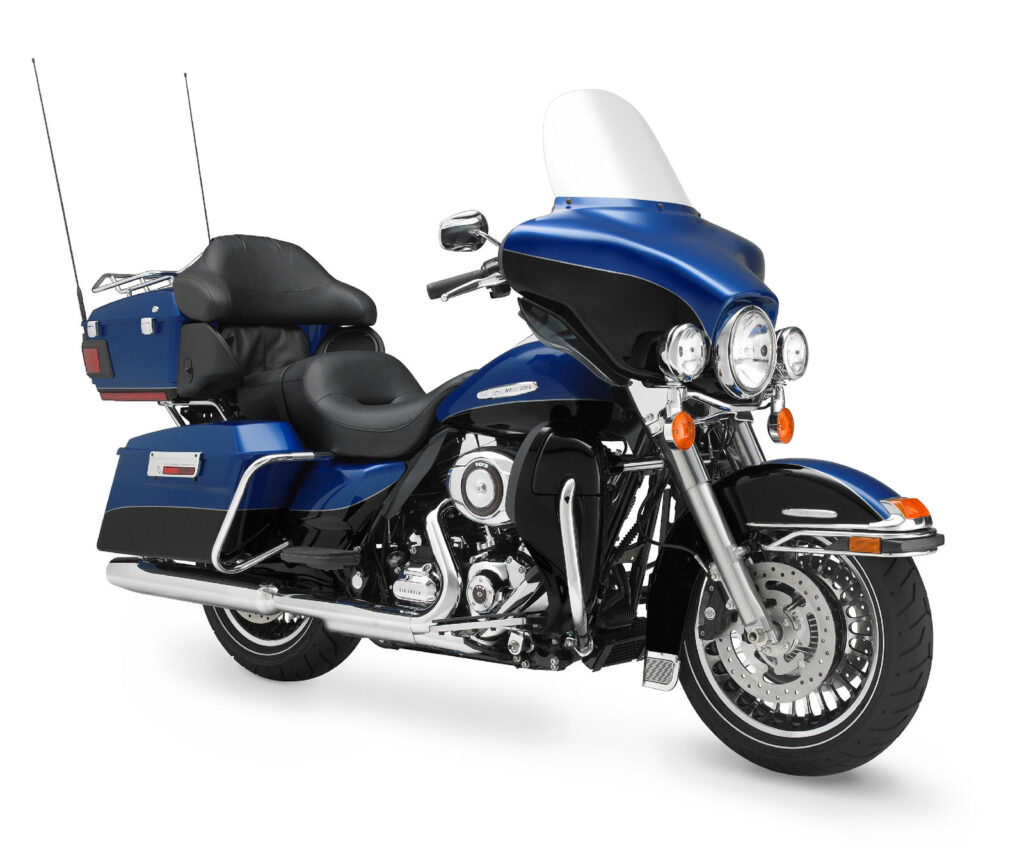

These are the known mechanical and performance specifications for your 2010 Harley-Davidson FLHTK Electra Glide Ultra Limited.
Basic Specs
Year2010
MakeHarley-Davidson
ModelHarley-Davidson FLHTK Electra Glide Ultra Limited
TypeTouring
Cost
Engine
Displacement1690.00 ccm (103.12 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke98.4 x 111.1 mm (3.9 x 4.4 inches)
Valves/Cylinder2
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
Exhaust2-1-2 chrome exhaust with dual mufflers and taper end caps
Lubrication
CoolingAir
Performance
Horespower
Torque136.00 Nm (13.9 kgf-m or 100.3 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity22.70 litres (6.00 gallons)
Emissions
Chassis
Frame Type
Rake26.0°
Trail170 mm (6.7 inches)
Front Suspension41.3mm telescopic, triple circuit damping
Front Travel117 mm (4.6 inches)
Rear SuspensionAir-adjustable
Rear Travel76 mm (3.0 inches)
Seat
Seat Height745 mm (29.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,525 mm (99.4 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,635 mm (64.4 inches)
Dry Weight400.0 kg (881.8 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre130/80-B17
Rear Tire/Tyre180/65-B16
Front BrakesDouble disc. 4-piston fixed caliper
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. 4-piston fixed caliper
Rear Brake Diameter300 mm (11.8 inches)
Wheels
Comments
Blacked-out engine with chrome accents; Premium Tour-Pak™ luggage rackwith upgraded luggage liners; Adjustable air-ride suspension; Full-length rider footboards; Stainless steel, classic touring handlebars; One-piece, two-up, Electra Glide® Classic seat; Clear Lexan® windshield; Heated hand grips; 12- volt power supply; Mid-frame air deflectors; New gauges with ‘Titanium face’ appearance; Harman-Kardon® Advanced Audio System; Intercom; Cruise control; ABS as standard
