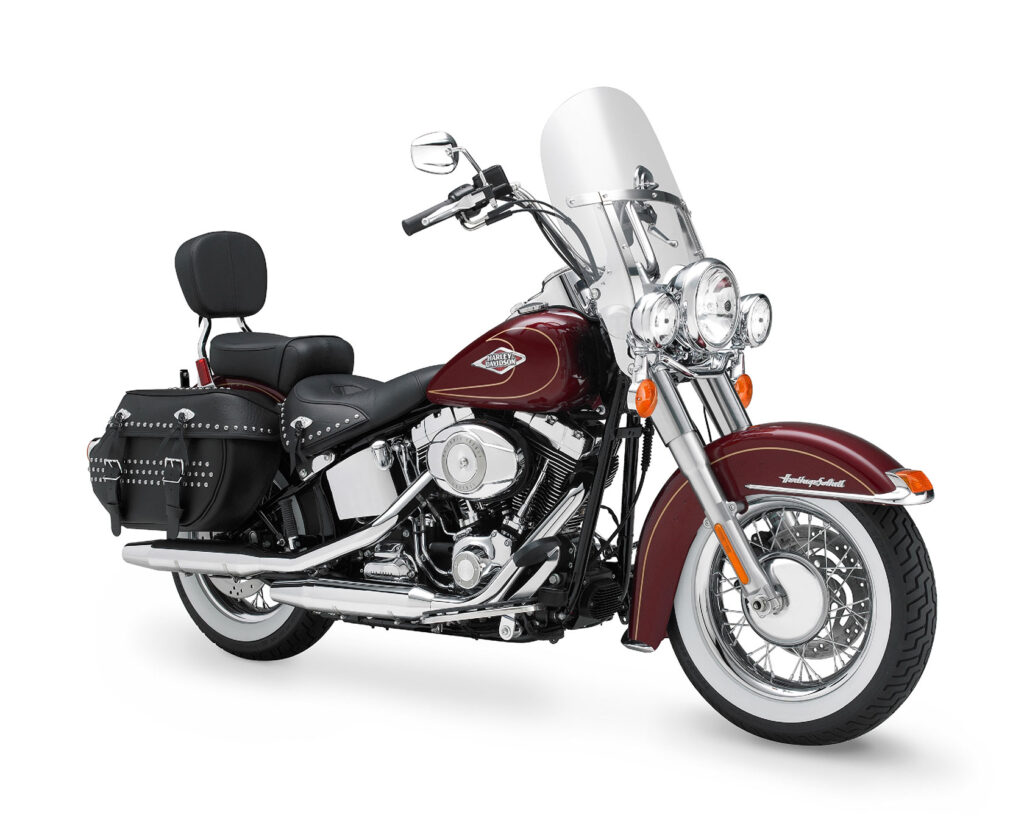

2010 Harley-Davidson FLSTC Heritage Softail Classic Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Harley-Davidson FLSTC Heritage Softail Classic.

Basic Specs

Year2010
MakeHarley-Davidson
ModelHarley-Davidson FLSTC Heritage Softail Classic
CostUS$ 16999. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1584.00 ccm (96.66 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.1 mm (3.8 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustChrome, staggered shorty exhaust with dual mufflers
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
Clutch9-plate, wet
Driveline

Performance

Horespower
Torque121.00 Nm (12.3 kgf-m or 89.2 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity19.70 litres (5.20 gallons)
Emissions

Chassis

Frame TypeMild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded.
Rake31.0°
Trail147 mm (5.8 inches)
Front Suspension41.3mm telescopic, “beer can” covers
Front Travel130 mm (5.1 inches)
Rear SuspensionHidden, horizontal-mounted, coil-over
Rear Travel109 mm (4.3 inches)
Seat
Seat Height690 mm (27.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,405 mm (94.7 inches)
Total Width
Ground Clearance131 mm (5.2 inches)
Wheelbase1,635 mm (64.4 inches)
Dry Weight326.0 kg (718.7 pounds)
Wet Weight

Wheels & Brakes

Front Tire/TyreMT90-B16
Rear Tire/Tyre150/80-B16
Front BrakesSingle disc. 4-piston
Front Brake Diameter292 mm (11.5 inches)
Rear BrakesSingle disc. 2-piston
Rear Brake Diameter292 mm (11.5 inches)
Wheels

Comments

It appears you're interested in specifications for the Harley-Davidson FLSTC Heritage Softail Classic. This Touring model is powered by a V2, four-stroke engine with 1584.00 ccm (96.66 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection allowing this machine to produce its horsepower and 121.00 Nm (12.3 kgf-m or 89.2 ft.lbs) torque. According to our records engine heat of the Harley-Davidson FLSTC Heritage Softail Classic is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is MT90-B16 and the rear is 150/80-B16 . The entire package is supported by the frame, Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. 4-piston front brakes and Single disc. 2-piston rear brakes. The Harley-Davidson FLSTC Heritage Softail Classic was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Black powder-coated engine with chrome treatment covers; Chrome,“horseshoe” oil tank with chrome external oil lines; Chrome, 178mm ball headlamp; Standard passenger footpegs and backrest; Chrome auxiliary lamps; Quick detachable king-size Lexan windshield; 1940’s-style leather saddlebags with quick opening buckles; Touring handlebars with top clamp and risers; Full FL front fender with chrome accents; Two-tone leather tank panel, Hydra Glide style chrome nacelle with horizontal “knuckles”; “Old-school” shaped, stainless steel rider footboards and brake pedal; Wide, whitewall tyres
