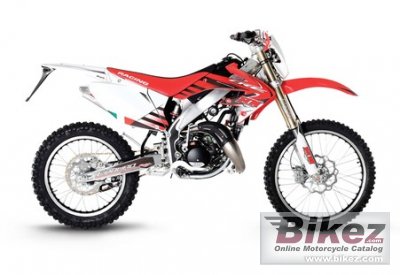

These are the known mechanical and performance specifications for your 2010 HM CRE Baja RR 10.
Basic Specs
Year2010
MakeHM
ModelHM CRE Baja RR 10
TypeEnduro / offroad
Cost Euro 3650. Prices depend on country, taxes, accessories, etc.
Engine
Displacement49.70 ccm (3.03 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression12.0:1
Bore/Stroke40.3 x 39.0 mm (1.6 x 1.5 inches)
Valves/Cylinder
FuelingCarburettor. Dell´Orto PHBN 16
Ignition
Exhaust
LubricationMixture 2%
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity6.00 litres (1.59 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height890 mm (35.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,140 mm (44.9 inches)
Total Length2,160 mm (85.0 inches)
Total Width820 mm (32.3 inches)
Ground Clearance305 mm (12.0 inches)
Wheelbase1,410 mm (55.5 inches)
Dry Weight81.0 kg (178.6 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre80/90-21
Rear Tire/Tyre100/80-18
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
Comments
HM is an abbreviation of Honda Montesa in Italy.
