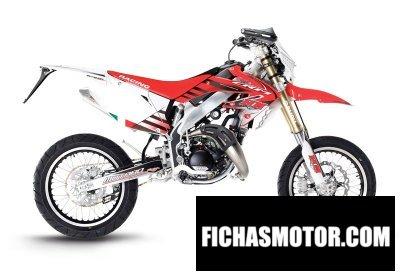

2010 HM Derapage Comp. 10 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 HM Derapage Comp. 10.

Basic Specs

Year2010
MakeHM
ModelHM Derapage Comp. 10
Cost Euro 4250. Prices depend on country, taxes, accessories, etc.

Engine

Displacement49.70 ccm (3.03 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression12.5:1
Bore/Stroke40.3 x 39.0 mm (1.6 x 1.5 inches)
Valves/Cylinder
FuelingCarburettor. Dell´Orto PHBG 19
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity6.00 litres (1.59 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height885 mm (34.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,180 mm (46.5 inches)
Total Length2,080 mm (81.9 inches)
Total Width830 mm (32.7 inches)
Ground Clearance331 mm (13.0 inches)
Wheelbase
Dry Weight83.5 kg (184.1 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre100/80-17
Rear Tire/Tyre130/70-17
Front BrakesSingle disc
Front Brake Diameter290 mm (11.4 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the HM Derapage Comp. 10. This Super motard model is powered by a Single cylinder, two-stroke engine with 49.70 ccm (3.03 cubic inches) of actual displacement before 12.5:1 compression. Fueling is metered via Carburettor. Dell´Orto PHBG 19 allowing this machine to produce its horsepower and torque. According to our records engine heat of the HM Derapage Comp. 10 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 100/80-17 and the rear is 130/70-17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The HM Derapage Comp. 10 was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

HM is Honda Montesa in Italy.
