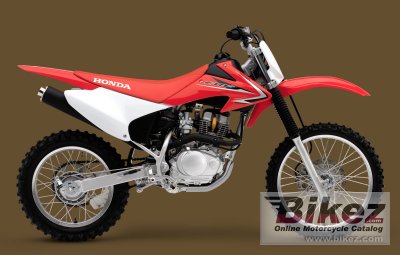

2010 Honda CRF150F Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Honda CRF150F.

Basic Specs

Year2010
MakeHonda
ModelHonda CRF150F
CostUS$ 3399. Prices depend on country, taxes, accessories, etc.

Engine

Displacement149.00 ccm (9.09 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke57.3 x 57.8 mm (2.3 x 2.3 inches)
Valves/Cylinder
FuelingCarburettor. 24mm piston-valve carburator
IgnitionCDI
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity7.19 litres (1.90 gallons)
Emissions

Chassis

Frame Type
Rake26.7°
Trail87 mm (3.4 inches)
Front Suspension35mm leading-axle Showa fork
Front Travel231 mm (9.1 inches)
Rear SuspensionPro-Link Showa single-shock
Rear Travel226 mm (8.9 inches)
Seat
Seat Height826 mm (32.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance254 mm (10.0 inches)
Wheelbase1,326 mm (52.2 inches)
Dry Weight
Wet Weight107.0 kg (236.0 pounds)

Wheels & Brakes

Front Tire/Tyre70/100-19
Rear Tire/Tyre90/100-16
Front BrakesSingle disc
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Honda CRF150F. This Cross / motocross model is powered by a Single cylinder, four-stroke engine with 149.00 ccm (9.09 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Carburettor. 24mm piston-valve carburator allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda CRF150F is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 70/100-19 and the rear is 90/100-16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Honda CRF150F was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: CRF150F
