Honda

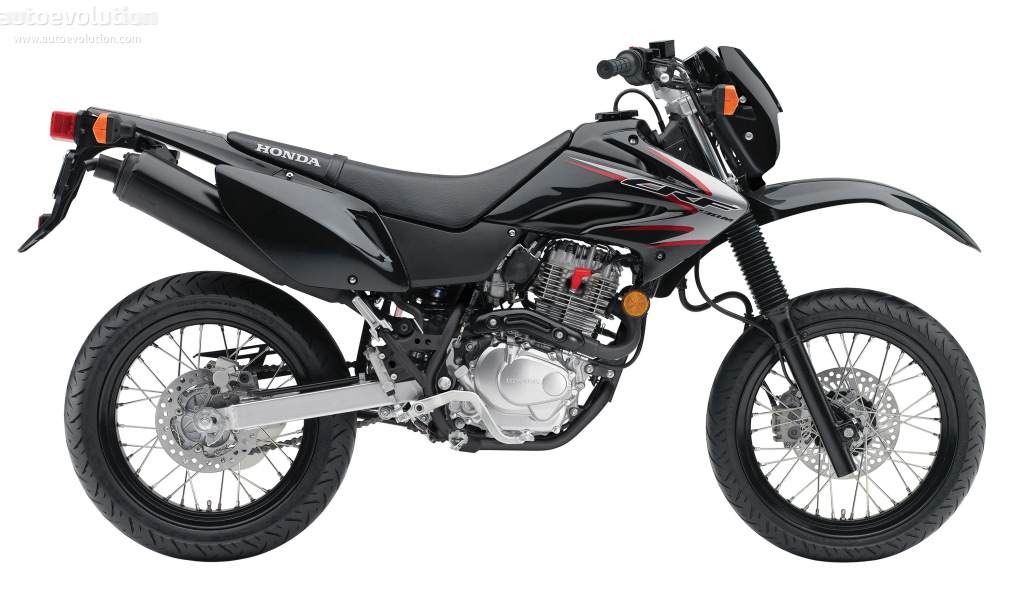

2010 Honda CRF230M Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Honda CRF230M.

Basic Specs

Year2010
MakeHonda
ModelHonda CRF230M
TypeSuper motard
CostUS$ 5399. Prices depend on country, taxes, accessories, etc.
Service Manual
Classic Service Manual
Electric Service Manual

Engine

Displacement223.00 ccm (13.61 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke65.5 x 66.2 mm (2.6 x 2.6 inches)
Valves/Cylinder
FuelingCarburettor. 30mm CV carburetor
IgnitionCD
Exhaust
Lubrication
CoolingAir
Spark Plugs

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
Driveline
Chain Clutch Plates

Performance

Horespower
Torque
Top Speed
K&N Air Filter Slip-on Exhaust

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity8.70 litres (2.30 gallons)
Emissions
Fuel Bottles & Cans

Chassis

Frame Type
Rake23.9°
Trail91 mm (3.6 inches)
Front Suspension37mm leading-axle Showa fork
Front Travel229 mm (9.0 inches)
Rear SuspensionPro-Link Showa single shock with spring preload adjustability
Rear Travel168 mm (6.6 inches)
Seat
Seat Height805 mm (31.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance236 mm (9.3 inches)
Wheelbase1,336 mm (52.6 inches)
Dry Weight
Wet Weight125.2 kg (276.0 pounds)
Seats & Covers Lowering Kits Titanium

Wheels & Brakes

Front Tire/Tyre110/70-17
Rear Tire/Tyre130/70-17
Front BrakesSingle disc
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
Front Brakes Pads Rear Brake Pads Front Tire Rear Tire

Comments

It appears you're interested in specifications for the Honda CRF230M. This Super motard model is powered by a Single cylinder, four-stroke engine with 223.00 ccm (13.61 cubic inches) of actual displacement before 9.0:1 compression. Fueling is metered via Carburettor. 30mm CV carburetor allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda CRF230M is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 110/70-17 and the rear is 130/70-17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Honda CRF230M was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: CRF230M
