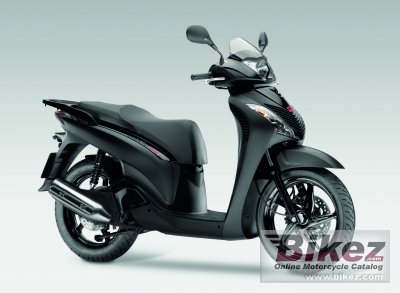

2010 Honda SH125i Sporty Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Honda SH125i Sporty.

Basic Specs

Year2010
MakeHonda
ModelHonda SH125i Sporty
Cost

Engine

Displacement125.00 ccm (7.63 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke52.4 x 57.8 mm (2.1 x 2.3 inches)
Valves/Cylinder
FuelingInjection. PGM-FI
IgnitionDigital transistorised with electronic advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

GearboxAutomatic
Final DriveBelt
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity7.50 litres (1.98 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front Suspension33mm telescopic fork
Front Travel
Rear SuspensionDual damper unit swingarm
Rear Travel
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,150 mm (45.3 inches)
Total Length2,020 mm (79.5 inches)
Total Width695 mm (27.4 inches)
Ground Clearance149 mm (5.9 inches)
Wheelbase1,335 mm (52.6 inches)
Dry Weight119.0 kg (262.4 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre100/80-16
Rear Tire/Tyre120/80-16
Front BrakesSingle disc
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter130 mm (5.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda SH125i Sporty. This Scooter model is powered by a Single cylinder, four-stroke engine with 125.00 ccm (7.63 cubic inches) of actual displacement before compression. Fueling is metered via Injection. PGM-FI allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda SH125i Sporty is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 100/80-16 and the rear is 120/80-16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Honda SH125i Sporty was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
