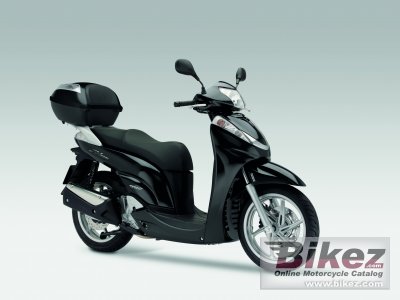

2010 Honda SH300i C-ABS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Honda SH300i C-ABS.

Basic Specs

Year2010
MakeHonda
ModelHonda SH300i C-ABS
Cost

Engine

Displacement279.10 ccm (17.03 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke72.0 x 68.5 mm (2.8 x 2.7 inches)
Valves/Cylinder
FuelingInjection. PGM-FI electronic fuel injection
IgnitionDigital transistorised with electronic advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

GearboxAutomatic
Final DriveBelt
Clutch
Driveline

Performance

Horespower26.82 HP (19.6 kW)
Torque26.00 Nm (2.7 kgf-m or 19.2 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity9.00 litres (2.38 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front Suspension35mm telescopic fork, 102mm axle travel
Front Travel
Rear SuspensionDual-damper unit swingarm, 95mm axle travel
Rear Travel
Seat
Seat Height785 mm (30.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,100 mm (82.7 inches)
Total Width
Ground Clearance136 mm (5.4 inches)
Wheelbase1,420 mm (55.9 inches)
Dry Weight164.0 kg (361.6 pounds)
Wet Weight175.0 kg (385.8 pounds)

Wheels & Brakes

Front Tire/Tyre110/70-(16
Rear Tire/Tyre130/70-(16
Front BrakesSingle disc. C-ABS
Front Brake Diameter256 mm (10.1 inches)
Rear BrakesSingle disc. C-ABS
Rear Brake Diameter256 mm (10.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda SH300i C-ABS. This Scooter model is powered by a Single cylinder, four-stroke engine with 279.10 ccm (17.03 cubic inches) of actual displacement before 10.5:1 compression. Fueling is metered via Injection. PGM-FI electronic fuel injection  allowing this machine to produce its 26.82 HP (19.6 kW) horsepower and 26.00 Nm (2.7 kgf-m or 19.2 ft.lbs) torque. According to our records engine heat of the Honda SH300i C-ABS is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 110/70-(16 and the rear is 130/70-(16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. C-ABS front brakes and Single disc. C-ABS rear brakes. The Honda SH300i C-ABS was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
