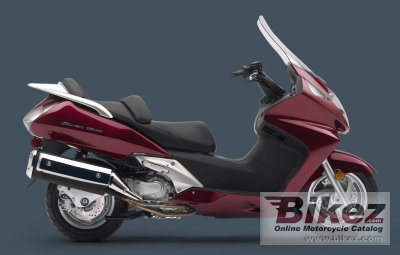

2010 Honda Silver Wing ABS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Honda Silver Wing ABS.

Basic Specs

Year2010
MakeHonda
ModelHonda Silver Wing ABS
CostUS$ 8999. Prices depend on country, taxes, accessories, etc.

Engine

Displacement582.00 ccm (35.51 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression10.2:1
Bore/Stroke72.0 x 71.5 mm (2.8 x 2.8 inches)
Valves/Cylinder4
FuelingInjection. PGM-FI with automatic enricher circuit, four-hole injectors
IgnitionComputer-controlled fully transistorized with electronic advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

GearboxAutomatic
Final DriveBelt
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity15.89 litres (4.20 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front Suspension41mm hydraulic fork
Front Travel119 mm (4.7 inches)
Rear SuspensionSwingarm with dual hydraulic shocks with five-position spring-preload adjustability
Rear Travel114 mm (4.5 inches)
Seat
Seat Height754 mm (29.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,595 mm (62.8 inches)
Dry Weight
Wet Weight249.9 kg (551.0 pounds)

Wheels & Brakes

Front Tire/Tyre120/80-14
Rear Tire/Tyre150/70-13
Front BrakesSingle disc. Single 276mm disc with CBS three-piston caliper and Anti-lock Braking System (ABS)
Front Brake Diameter276 mm (10.9 inches)
Rear BrakesSingle disc. Single 240mm disc with CBS twin-piston caliper; ABS Braking System
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda Silver Wing ABS. This Scooter model is powered by a Twin, four-stroke engine with 582.00 ccm (35.51 cubic inches) of actual displacement before 10.2:1 compression. Fueling is metered via Injection. PGM-FI with automatic enricher circuit, four-hole injectors allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda Silver Wing ABS is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/80-14 and the rear is 150/70-13 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Single 276mm disc with CBS three-piston caliper and Anti-lock Braking System (ABS) front brakes and Single disc. Single 240mm disc with CBS twin-piston caliper; ABS Braking System rear brakes. The Honda Silver Wing ABS was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: FSC600A
