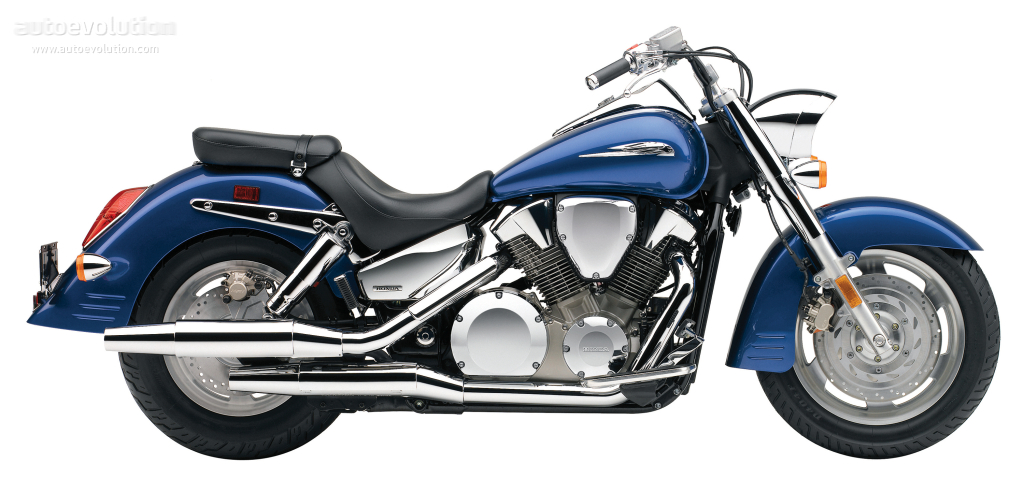

2010 Honda VTX1300T Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Honda VTX1300T.

Basic Specs

Year2010
MakeHonda
ModelHonda VTX1300T
CostUS$ 11499. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1312.00 ccm (80.06 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression
Bore/Stroke89.5 x 104.3 mm (3.5 x 4.1 inches)
Valves/Cylinder
FuelingCarburettor. Single 38mm constant-velocity carburetor
IgnitionDigital with three-dimensional mapping, two spark plugs per cylinder
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity18.16 litres (4.80 gallons)
Emissions

Chassis

Frame Type
Rake32.0°
Trail144 mm (5.7 inches)
Front Suspension41mm fork
Front Travel
Rear Suspensionear: Dual shocks with five-position spring-preload adjustability
Rear Travel
Seat
Seat Height696 mm (27.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,689 mm (66.5 inches)
Dry Weight
Wet Weight339.3 kg (748.0 pounds)

Wheels & Brakes

Front Tire/Tyre140/80-17
Rear Tire/Tyre170/80-15
Front BrakesSingle disc. Twin-piston caliper
Front Brake Diameter
Rear BrakesSingle disc. Single-piston caliper
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Honda VTX1300T. This Touring model is powered by a V2, four-stroke engine with 1312.00 ccm (80.06 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor. Single 38mm constant-velocity carburetor allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda VTX1300T is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 140/80-17 and the rear is 170/80-15 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Twin-piston caliper front brakes and Single disc. Single-piston caliper rear brakes. The Honda VTX1300T was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: VTX1300T. Also calles VTX 1300 Touring.
