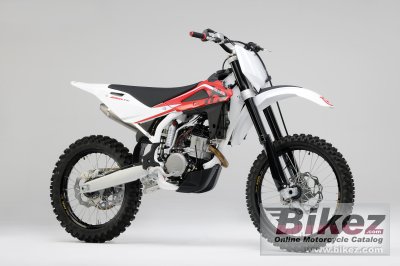

These are the known mechanical and performance specifications for your 2010 Husqvarna TC 250.
Basic Specs
Engine
Displacement249.50 ccm (15.22 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.9:1
Bore/Stroke76.0 x 55.0 mm (3.0 x 2.2 inches)
Valves/Cylinder4
FuelingCarburettor. Keihin FCR-MX39 Carburettor
Ignition
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveChain
ClutchMultiplate type, hydraulic control
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity7.00 litres (1.85 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front Suspension48mm Kayaba AOS
Front Travel300 mm (11.8 inches)
Rear SuspensionSachs Multi Adjustable Shock with Soft Damp Linkage
Rear Travel296 mm (11.7 inches)
Seat
Seat Height968 mm (38.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,207 mm (86.9 inches)
Total Width
Ground Clearance
Wheelbase
Dry Weight95.3 kg (210.2 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre80/100-21
Rear Tire/Tyre100/90-19
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels
