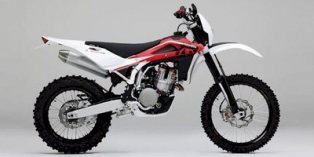

These are the known mechanical and performance specifications for your 2010 Husqvarna TE510.
Basic Specs
Engine
Displacement501.00 ccm (30.57 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke97.0 x 67.8 mm (3.8 x 2.7 inches)
Valves/Cylinder4
FuelingInjection. Mikuni Digital
Ignition
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchMulti plate, hydraulic operation
Driveline
Chassis
Frame Type
Rake
Trail
Front Suspension48mm Kayaba USD
Front Travel300 mm (11.8 inches)
Rear Suspensionachs Multi Adjustable Shock with Soft Damp Linkage
Rear Travel296 mm (11.7 inches)
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,495 mm (58.9 inches)
Dry Weight112.0 kg (246.9 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre90/90-21
Rear Tire/Tyre140/80-18
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
Comments
Street legal.
