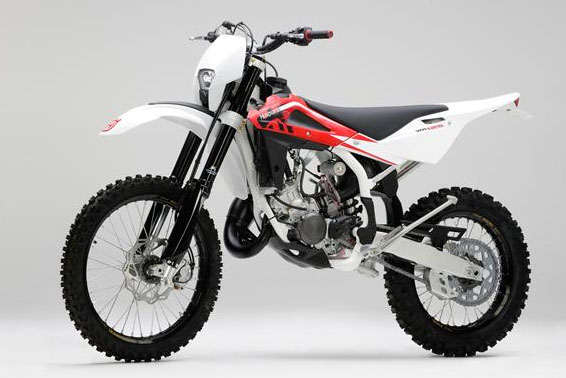

These are the known mechanical and performance specifications for your 2010 Husqvarna WR125.
Basic Specs
Engine
Displacement124.82 ccm (7.62 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke54.0 x 54.5 mm (2.1 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor. Mikuni TMX38
Ignition
Exhaust
LubricationFuel-oil premixture of 33:1
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity8.10 litres (2.14 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front Suspension50mm Marzocchi USD
Front Travel
Rear SuspensionSachs Multi Adjustable Shock with Soft Damp Linkage
Rear Travel
Seat
Seat Height980 mm (38.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,210 mm (87.0 inches)
Total Width840 mm (33.1 inches)
Ground Clearance360 mm (14.2 inches)
Wheelbase1,465 mm (57.7 inches)
Dry Weight99.3 kg (219.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc. Bremo
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Bremo
Rear Brake Diameter220 mm (8.7 inches)
Wheels
Comments
