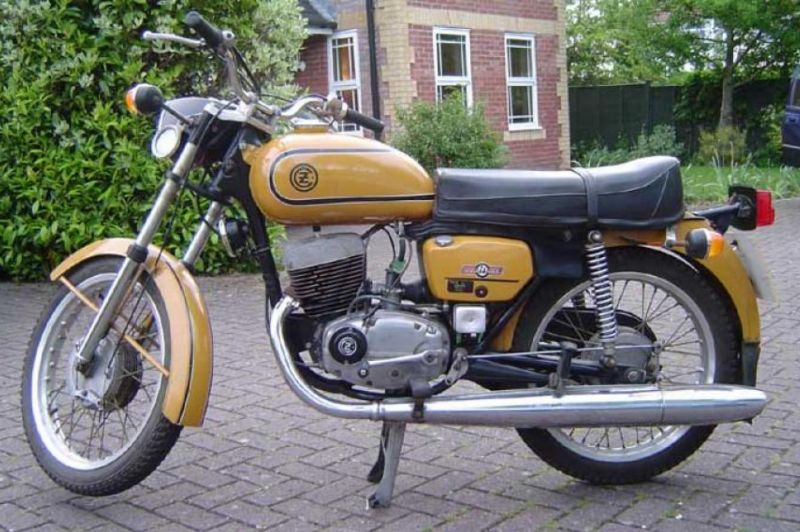

2010 Jawa-CZ 125 Sport Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Jawa-CZ 125 Sport.

Basic Specs

Year2010
MakeJawa-CZ
ModelJawa-CZ 125 Sport
TypeSport
Cost

Engine

Displacement124.00 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke56.5 x 49.5 mm (2.2 x 1.9 inches)
Valves/Cylinder
Fueling
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final Drive
Clutch
Driveline

Performance

Horespower12.60 HP (9.2 kW)
Torque
Top Speed108.0 km/h (67.1 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity6.50 litres (1.72 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic forks
Front Travel170 mm (6.7 inches)
Rear SuspensionCentral unit
Rear Travel150 mm (5.9 inches)
Seat
Seat Height830 mm (32.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,350 mm (53.1 inches)
Dry Weight99.0 kg (218.3 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre2.75-19
Rear Tire/Tyre3.50-16
Front BrakesSingle disc. Hydraulic
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesSingle disc. Hydraulic
Rear Brake Diameter180 mm (7.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Jawa-CZ 125 Sport. This Sport model is powered by a Single cylinder, four-stroke engine with 124.00 ccm (7.57 cubic inches) of actual displacement before 9.0:1 compression. Fueling is metered via allowing this machine to produce its 12.60 HP (9.2 kW) horsepower and torque. According to our records engine heat of the Jawa-CZ 125 Sport is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 2.75-19 and the rear is 3.50-16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Hydraulic front brakes and Single disc. Hydraulic rear brakes. The Jawa-CZ 125 Sport was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Jawa bikes are made in the Czech Republic
