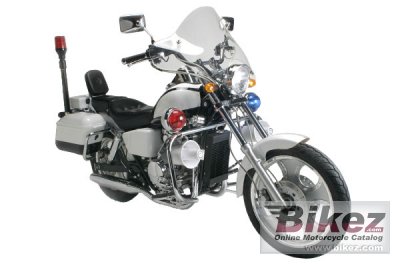

2010 Johnny Pag Police - Escort Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Johnny Pag Police - Escort.

Basic Specs

Year2010
MakeJohnny Pag
ModelJohnny Pag Police - Escort
CostUS$ 3999. Prices depend on country, taxes, accessories, etc.

Engine

Displacement300.00 ccm (18.31 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression10.2:1
Bore/Stroke57.0 x 53.0 mm (2.2 x 2.1 inches)
Valves/Cylinder2
FuelingCarburettor. Keihin
IgnitionC.D.I.
Exhaust
LubricationForced Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower23.80 HP (17.4 kW)
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption3.61 litres/100 km (27.7 km/l or 65.16 mpg)
Fuel Capacity15.89 litres (4.20 gallons)
Emissions83.8 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake36.0°
Trail
Front SuspensionTelescopic forks
Front Travel
Rear SuspensionDual shocks
Rear Travel
Seat
Seat Height660 mm (26.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,575 mm (62.0 inches)
Dry Weight
Wet Weight163.3 kg (360.0 pounds)

Wheels & Brakes

Front Tire/Tyre90/90-18
Rear Tire/Tyre130/90-15
Front BrakesDouble disc. 2-piston calipers
Front Brake Diameter
Rear BrakesSingle disc. 2-piston calipers
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Johnny Pag Police - Escort. This Touring model is powered by a Twin, four-stroke engine with 300.00 ccm (18.31 cubic inches) of actual displacement before 10.2:1 compression. Fueling is metered via Carburettor. Keihin allowing this machine to produce its 23.80 HP (17.4 kW) horsepower and torque. According to our records engine heat of the Johnny Pag Police - Escort is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-18 and the rear is 130/90-15 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. 2-piston calipers front brakes and Single disc. 2-piston calipers rear brakes. The Johnny Pag Police - Escort was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Also called JPM Police Escort 300.
