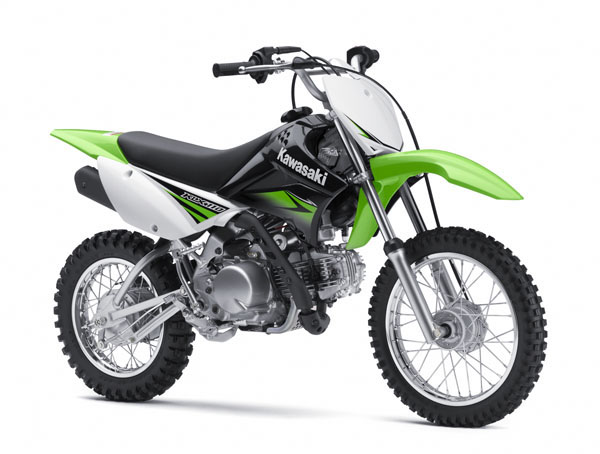

2010 Kawasaki KLX 110L Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Kawasaki KLX 110L.

Basic Specs

Year2010
MakeKawasaki
ModelKawasaki KLX 110L
CostUS$ 2249. Prices depend on country, taxes, accessories, etc.

Engine

Displacement111.00 ccm (6.77 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke53.0 x 50.6 mm (2.1 x 2.0 inches)
Valves/Cylinder
FuelingCarburettor. Mikuni PB18
IgnitionCDI
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox4-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity3.78 litres (1.00 gallons)
Emissions

Chassis

Frame TypeBackbone frame, high-tensile steel
Rake24.2°
Trail
Front Suspension30mm hydraulic telescopic fork / 5.2 in.
Front Travel
Rear SuspensionSwingarm with single hydraulic shock / 5.1 in.
Rear Travel
Seat
Seat Height729 mm (28.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length1,560 mm (61.4 inches)
Total Width650 mm (25.6 inches)
Ground Clearance264 mm (10.4 inches)
Wheelbase1,074 mm (42.3 inches)
Dry Weight
Wet Weight76.2 kg (168.0 pounds)

Wheels & Brakes

Front Tire/Tyre70/14-.17
Rear Tire/Tyre90/12-.14
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter186 mm (7.3 inches)
Wheels

Comments

It appears you're interested in specifications for the Kawasaki KLX 110L. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 111.00 ccm (6.77 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Carburettor. Mikuni PB18 allowing this machine to produce its horsepower and torque. According to our records engine heat of the Kawasaki KLX 110L is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 70/14-.17 and the rear is 90/12-.14 . The entire package is supported by the frame, Backbone frame, high-tensile steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake) front brakes and Single disc rear brakes. The Kawasaki KLX 110L was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
