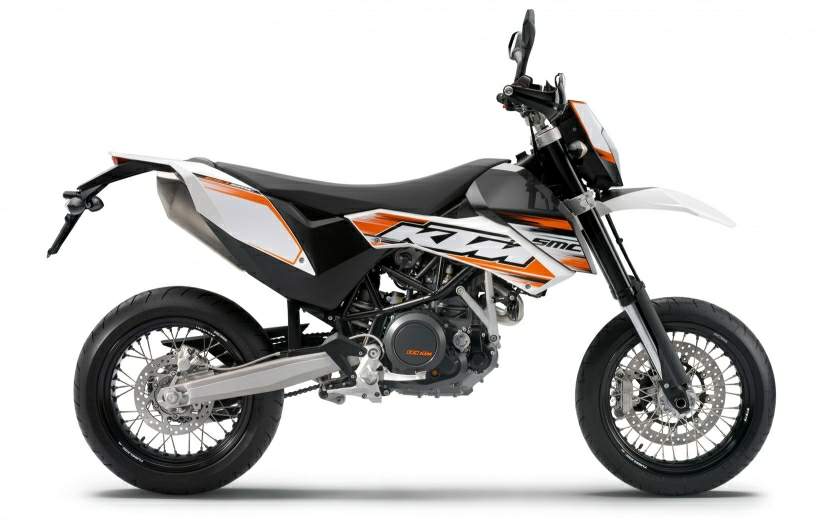

These are the known mechanical and performance specifications for your 2010 KTM 690 SMC.
Basic Specs
Engine
Displacement654.00 ccm (39.91 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.8:1
Bore/Stroke102.0 x 80.0 mm (4.0 x 3.1 inches)
Valves/Cylinder4
Fueling
IgnitionKeihin EMS
ExhaustStainless steel silencer with regulated catalytic converter
LubricationPressure lubrication with 2 oil pumps
CoolingLiquid
Drivetrain
Gearbox6-speed
Final Drive
ClutchAPTC slipper clutch, hydraulically operated
Driveline
Performance
Horespower
Torque64.00 Nm (6.5 kgf-m or 47.2 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity12.00 litres (3.17 gallons)
Emissions
Chassis
Frame TypeChromium-Molybdenum trellis frame, powder coated
Rake27.0°
Trail112 mm (4.4 inches)
Front SuspensionWP USD Ø 48 mm (1.89
Front Travel275 mm (10.8 inches)
Rear SuspensionWP mono shock with Pro Lever Linkage
Rear Travel265 mm (10.4 inches)
Seat
Seat Height900 mm (35.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance290 mm (11.4 inches)
Wheelbase1,480 mm (58.3 inches)
Dry Weight139.5 kg (307.5 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-17
Rear Tire/Tyre160/60-17
Front BrakesSingle disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels
