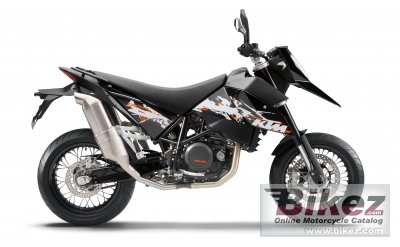

These are the known mechanical and performance specifications for your 2010 KTM 690 Supermoto Limited Edition.
Basic Specs
Engine
Displacement654.00 ccm (39.91 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.8:1
Bore/Stroke102.0 x 80.0 mm (4.0 x 3.1 inches)
Valves/Cylinder4
FuelingCarburettor. Keihin MX FCR 41
IgnitionKokusan
ExhaustTwin stainless-steel silencer with regulated catalytic converters
LubricationPressure lubrication with 2 oil pumps
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchAPTC slipper clutch, hydraulically operated
Driveline
Performance
Horespower62.75 HP (45.8 kW)
Torque65.00 Nm (6.6 kgf-m or 47.9 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity13.50 litres (3.57 gallons)
Emissions
Chassis
Frame TypeChromium-Molybdenum trellis frame, powder coated
Rake26.5°
Trail115 mm (4.5 inches)
Front SuspensionWP USDfork
Front Travel210 mm (8.3 inches)
Rear SuspensionWP mono shock with Pro Lever Linkage
Rear Travel210 mm (8.3 inches)
Seat
Seat Height880 mm (34.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance245 mm (9.6 inches)
Wheelbase1,472 mm (58.0 inches)
Dry Weight154.0 kg (339.5 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-17
Rear Tire/Tyre160/60-17
Front BrakesSingle disc. Brembo four piston, radially bolted caliper
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Brembo single piston, floating caliper
Rear Brake Diameter240 mm (9.4 inches)
Wheels
