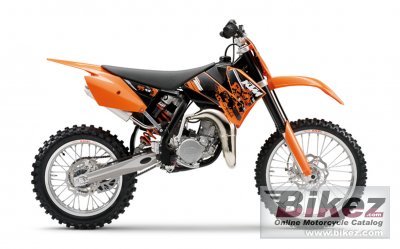

These are the known mechanical and performance specifications for your 2010 KTM 85 SX 19-16.
Basic Specs

Engine
Displacement84.90 ccm (5.18 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke47.0 x 49.0 mm (1.9 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor. Keihin PWK 28
IgnitionMoric digital 2M1
ExhaustAluminium
LubricationMixture oil lubrication 1:40
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchWet mDouble disk clutch, operated hydraulically
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity5.00 litres (1.32 gallons)
Emissions
Chassis
Frame TypeDouble grinded central double-cradle-type frame
Rake24.0°
Trail
Front SuspensionWP USD 43 mm fork
Front Travel280 mm (11.0 inches)
Rear SuspensionWP PDS mono shock
Rear Travel300 mm (11.8 inches)
Seat
Seat Height875 mm (34.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance415 mm (16.3 inches)
Wheelbase1,290 mm (50.8 inches)
Dry Weight68.0 kg (149.9 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre70/100-19
Rear Tire/Tyre90/100-16
Front BrakesSingle disc
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter200 mm (7.9 inches)
Wheels
Comments
Also available with 17/14 inch wheels.
