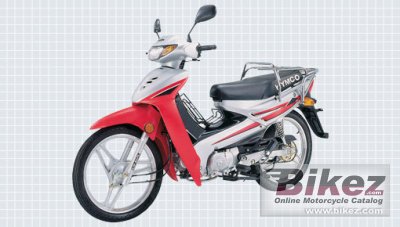

2010 Kymco Active SR 125 E3 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Kymco Active SR 125 E3.

Basic Specs

Year2010
MakeKymco
ModelKymco Active SR 125 E3
Cost

Engine

Displacement124.00 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke54.0 x 54.0 mm (2.1 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionCDI
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox4-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower8.04 HP (5.9 kW)
Torque8.50 Nm (0.9 kgf-m or 6.3 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity3.50 litres (0.92 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic fork
Front Travel105 mm (4.1 inches)
Rear SuspensionSingle shock
Rear Travel61 mm (2.4 inches)
Seat
Seat Height
Alt. Seat Height
Total Height1,085 mm (42.7 inches)
Total Length1,995 mm (78.5 inches)
Total Width680 mm (26.8 inches)
Ground Clearance
Wheelbase1,265 mm (49.8 inches)
Dry Weight97.0 kg (213.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre2.50-17
Rear Tire/Tyre2.75-17
Front BrakesSingle disc
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter110 mm (4.3 inches)
Wheels

Comments

It appears you're interested in specifications for the Kymco Active SR 125 E3. This Scooter model is powered by a Single cylinder, four-stroke engine with 124.00 ccm (7.57 cubic inches) of actual displacement before 9.0:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 8.04 HP (5.9 kW) horsepower and 8.50 Nm (0.9 kgf-m or 6.3 ft.lbs) torque. According to our records engine heat of the Kymco Active SR 125 E3 is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 2.50-17 and the rear is 2.75-17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Kymco Active SR 125 E3 was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
