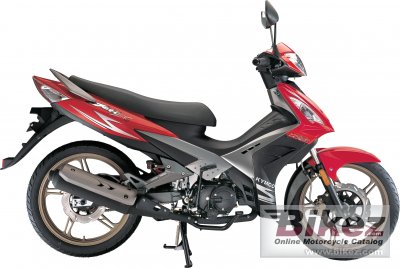

2010 Kymco Jetix 125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Kymco Jetix 125.

Basic Specs

Year2010
MakeKymco
ModelKymco Jetix 125
Cost

Engine

Displacement123.60 ccm (7.54 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke54.0 x 54.0 mm (2.1 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionC.D.I.
Exhaust
Lubrication
CoolingLiquid

Drivetrain

GearboxAutomatic
Final DriveBelt
ClutchWet, multiplate
Driveline

Performance

Horespower7.78 HP (5.7 kW)
Torque8.50 Nm (0.9 kgf-m or 6.3 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity6.80 litres (1.80 gallons)
Emissions

Chassis

Frame TypePine under bone
Rake
Trail
Front SuspensionTelescopic fork
Front Travel80 mm (3.1 inches)
Rear SuspensionMonoshock
Rear Travel25 mm (1.0 inches)
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,095 mm (43.1 inches)
Total Length1,995 mm (78.5 inches)
Total Width
Ground Clearance
Wheelbase
Dry Weight101.0 kg (222.7 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre70/90-17
Rear Tire/Tyre80/90-17
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Kymco Jetix 125. This Scooter model is powered by a Single cylinder, four-stroke engine with 123.60 ccm (7.54 cubic inches) of actual displacement before 9.0:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 7.78 HP (5.7 kW) horsepower and 8.50 Nm (0.9 kgf-m or 6.3 ft.lbs) torque. According to our records engine heat of the Kymco Jetix 125 is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 70/90-17 and the rear is 80/90-17 . The entire package is supported by the frame, Pine under bone. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Kymco Jetix 125 was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Kymco is made by Kwang Yang Motor Company, Taiwan.
