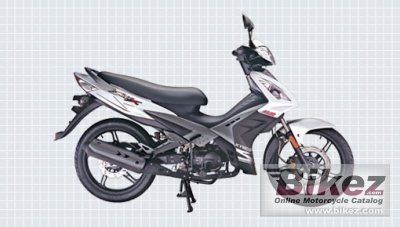

These are the known mechanical and performance specifications for your 2010 Kymco Jetix 150.
Basic Specs
Engine
Displacement149.30 ccm (9.11 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke54.0 x 61.5 mm (2.1 x 2.4 inches)
Valves/Cylinder4
FuelingCarburettor
IgnitionCDI
Exhaust
Lubrication
CoolingLiquid
Drivetrain
GearboxAutomatic
Final DriveBelt
ClutchWet type, multi-plate
Driveline
Performance
Horespower8.00 HP (5.8 kW)
Torque11.70 Nm (1.2 kgf-m or 8.6 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity6.80 litres (1.80 gallons)
Emissions
Chassis
Frame TypePipe under bone
Rake
Trail
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionMonoshock
Rear Travel
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,095 mm (43.1 inches)
Total Length1,995 mm (78.5 inches)
Total Width
Ground Clearance
Wheelbase1,295 mm (51.0 inches)
Dry Weight102.0 kg (224.9 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre70/90-17
Rear Tire/Tyre80/90-17
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
Comments
Made in Taiwan.
